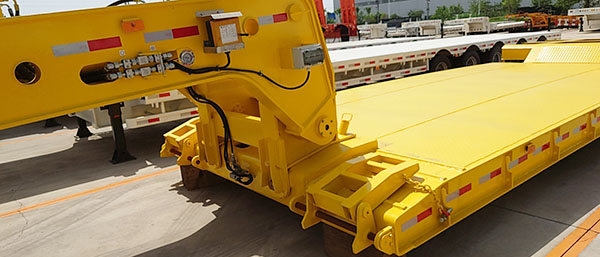

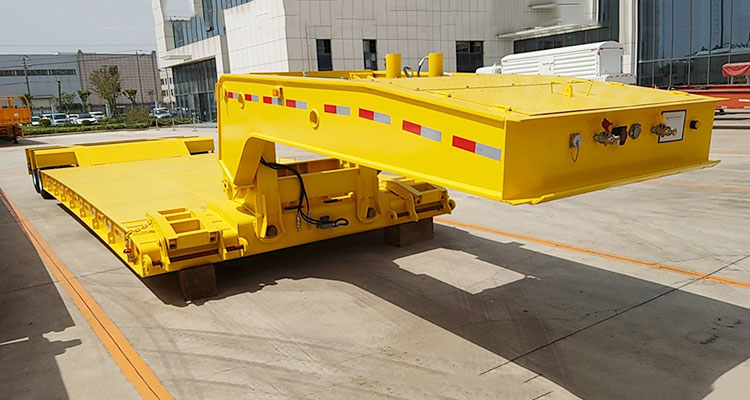

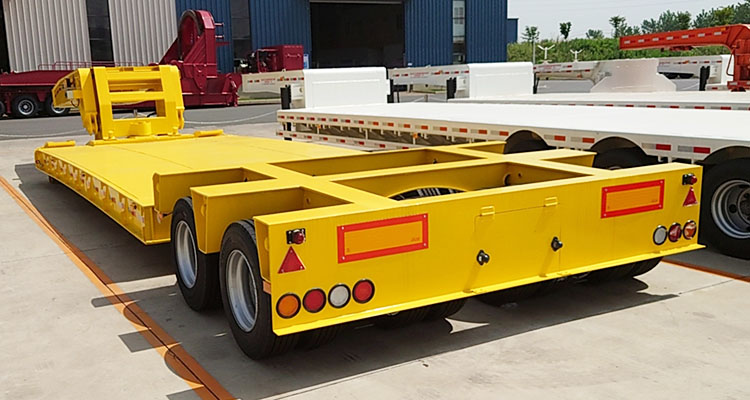

3 Axle 80ton Heavy Machinery Trailer Low Bed Detachable Goose Neck Trailer

Curb Weight(KGS)

9000

Loading Weight( KGS)

80000

Total weight(KGS)

89000

Axle Brand

13TON Axle FUWA brand

Axle Number

3

Wheelbase(mm)

6010*1310*1310

Suspension system

Mechanical suspension

Steel Spring

10/10/10 leaf spring suspension

Frame

The height of the beam is 500mm, upper plate is 20mm, down   plate is 20mm, middle plate is double 10mm

Platform plate

4mm Diamond Plate

Tire type and quantity

12R22.5 12units

Traction Pin

50mm or 90mm FUWA brand

Spare Wheel Bracket

2 pieces

Tool Box

1 Unit

Landing Gear

Standard 28T

Brake air chamber

6 big air chambers

Ladder(ramp)

Mechanical ladder(ramp)

Electrical system

24V, 7 Pole plug

One set 6-core standard Cable

Tail lamp with turn signal, brake light & reflector, side   lamp etc
