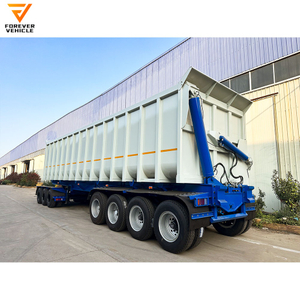

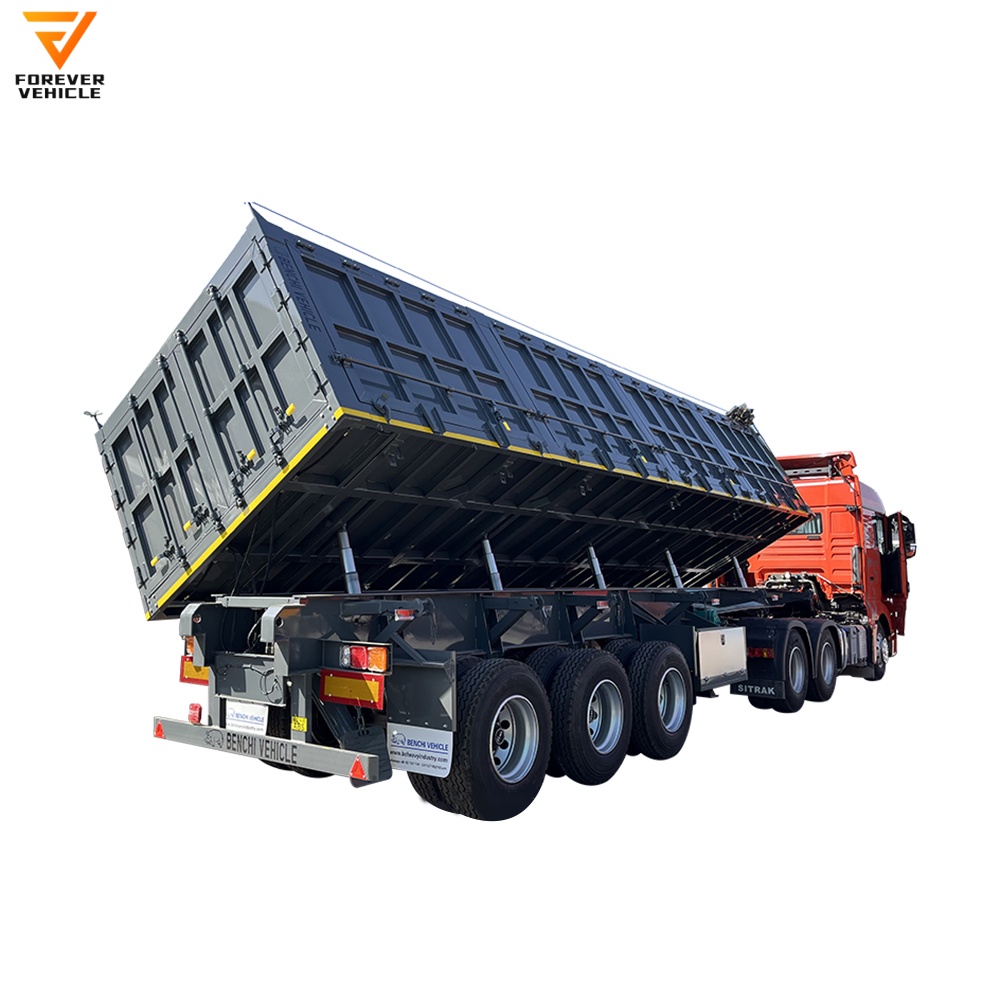

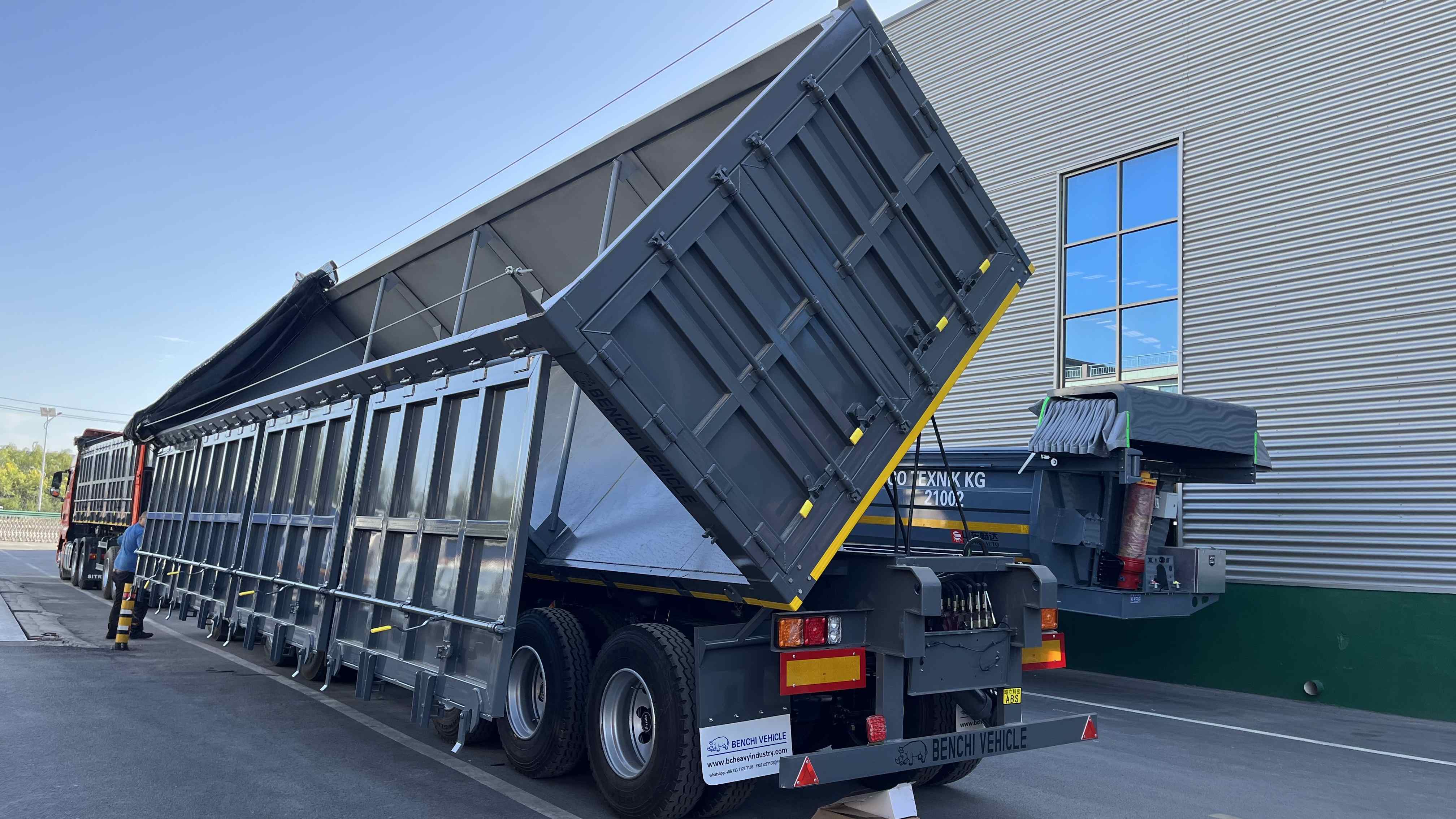

30-50CBM Hydraulic Dump Truck/Side Dumper Tipper Semi Trailers
| Quantity: | |
|---|---|
| Size | 10000mm x 2500mm x1650mm(customizable). |
| Load | 80T,39m³ |
| Edge plate thickness | 4mm flat plate |
| Bottom plate | 5mm flat plate |
| Lifting system | 202 Hualiang Haiwo (optional imported Haiwo) |
| Axle | 4-axle, 13T FUWA/BPW/packaging brand |
| Rim | 18pcs |
| Tire | 1200R20-18 * 16pcs |

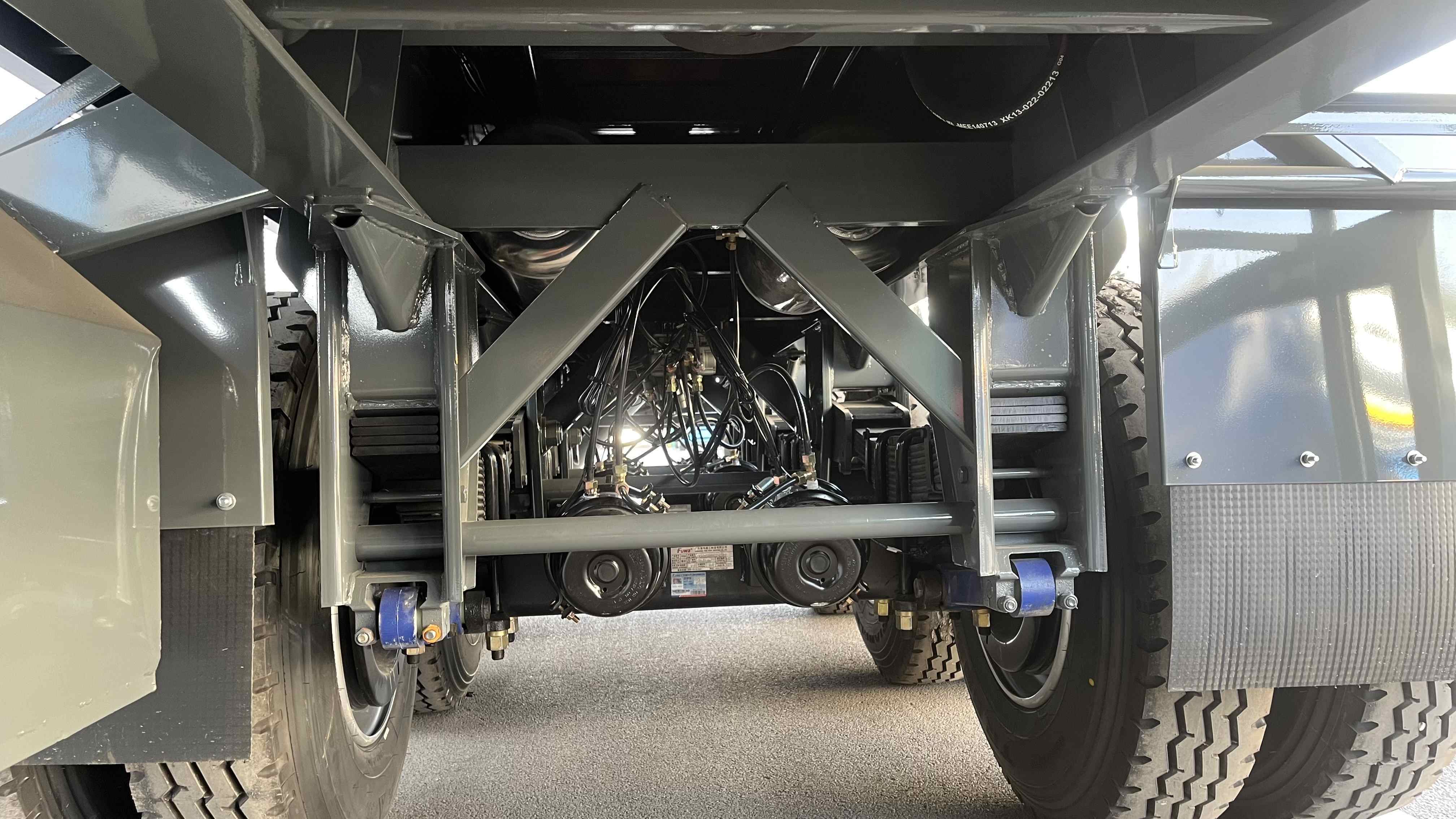

| Suspension | Mechanical suspension |
| Leaf spring | 90 (width) millimeters x 13 (thickness) millimeters x 10 layers |
| Main sales | JOST brand/factory equipped 2.0 or 3.5 inches (bolt or welded type) |
| Legs | JOST brand/domestic brand |
| Main beam | height 500mm, |
| upper plate | 16mm T700 material |
| middle plate | 18mm T700 material |
| lower plate | 10mm T700 material |
| ABS | optional |
| Valve | WEBCO valve |
| Size | 10000mm x 2500mm x1650mm(customizable). |
| Load | 80T,39m³ |
| Edge plate thickness | 4mm flat plate |
| Bottom plate | 5mm flat plate |
| Lifting system | 202 Hualiang Haiwo (optional imported Haiwo) |
| Axle | 4-axle, 13T FUWA/BPW/packaging brand |
| Rim | 18pcs |
| Tire | 1200R20-18 * 16pcs |
| Suspension | Mechanical suspension |
| Leaf spring | 90 (width) millimeters x 13 (thickness) millimeters x 10 layers |
| Main sales | JOST brand/factory equipped 2.0 or 3.5 inches (bolt or welded type) |
| Legs | JOST brand/domestic brand |
| Main beam | height 500mm, |
| upper plate | 16mm T700 material |
| middle plate | 18mm T700 material |
| lower plate | 10mm T700 material |
| ABS | optional |
| Valve | WEBCO valve |
