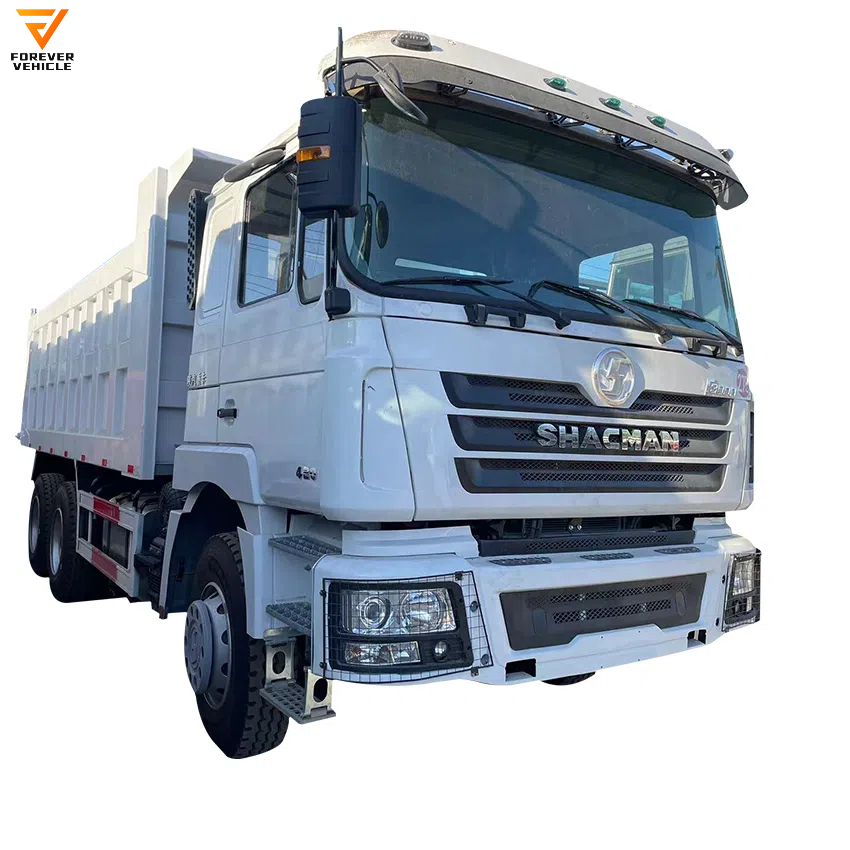

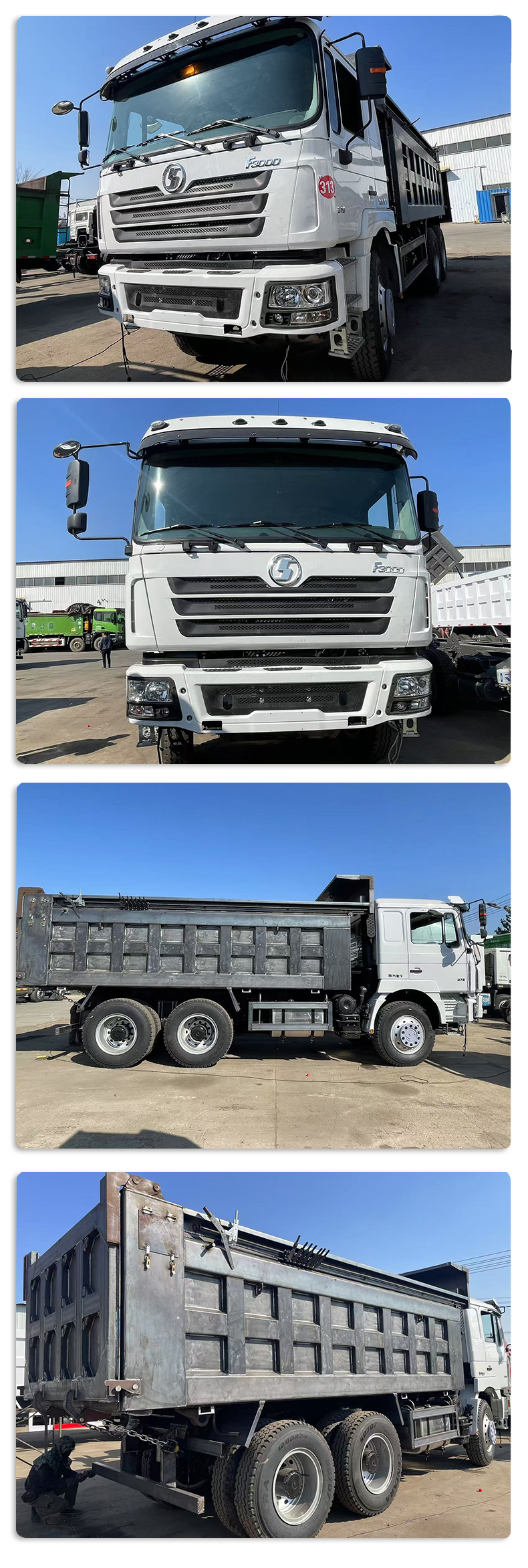

Shacman F3000 6x4 10-Wheel Dump Truck 400hp Euro 2 Emission Standard RHD Automatic Transmission Used Condition Drive 5t-30t
| Quantity: | |
|---|---|
| Traction | 6X4 |
| Driving type | LHD (RHD is option) |
| Cabin | HW76 Cab, with one sleeper bed, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60° |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, |
| coolant temperature, engine oil pressure and battery charging | |
| Seats | 4-point support fully floating suspension + shock |
| absorbers driver adjustable & passenger fixed | |
| Seat safe belts | For driver & passenger |
| Engine Brand | WEICHAI |
| Model | WD615.47 371hp |
| Emission | Euro II |
| Diesel 4-stroke direct injection engine,6-cylinder in-line with water | |
| Engine type | cooling,trubo-charging & inter-cooling |
| Displacement | 9.726 L /Diesel |
| Max. output | 371hp@2200rpm |
| Max. torque | 1500Nm @1100-1600 rpm |
| Compression ratio | 17:01 |
| Bore/Stroke(mm) | 126/130 |
| Specific fuel consumption | 198g/Kwh |
| Gear Model | HW19710 |
| Brand | SINOTRUCK |
| Type | 10 Forward& 2 Reverse |
| Fuel tank | 300L Iron Tank with locking fuel cap, fitted to the off side of the chassis |
| Front axle: | HF9 tons front axle with drum brake |
| Rear axle | HC16 16tons |

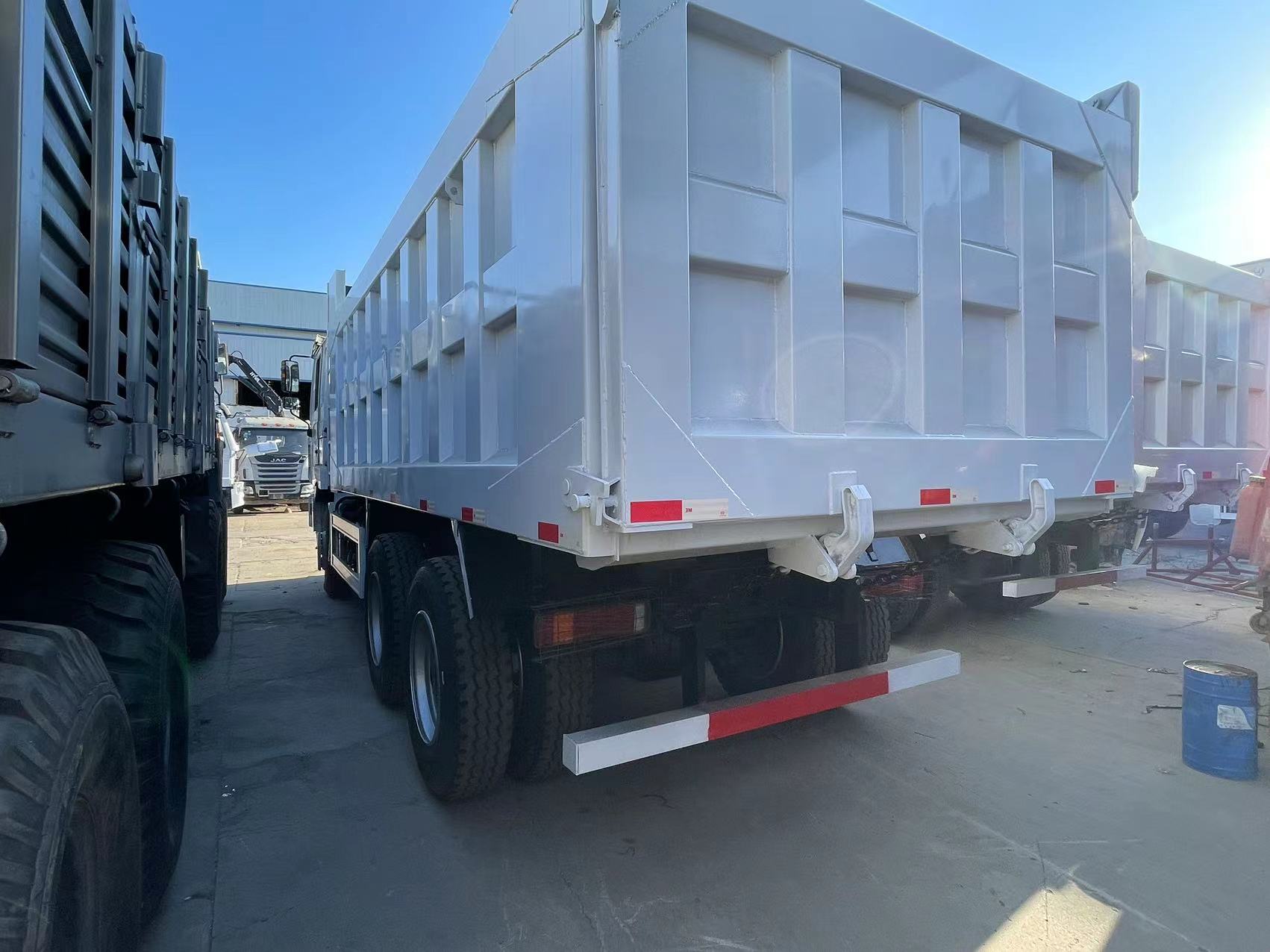

| Tipper Bucket | Body size（mm）:7200×2300×1800 |
| Capacity: 30CBM | |
| Thickness of body steel(mm): floor 8 side & back 4 | |
| Tipping type: Front tipping type( in front of the body with HYVA | |
| tipping system Holland technology ) |
| Traction | 6X4 |
| Driving type | LHD (RHD is option) |
| Cabin | HW76 Cab, with one sleeper bed, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60° |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, |
| coolant temperature, engine oil pressure and battery charging | |
| Seats | 4-point support fully floating suspension + shock |
| absorbers driver adjustable & passenger fixed | |
| Seat safe belts | For driver & passenger |
| Engine Brand | WEICHAI |
| Model | WD615.47 371hp |
| Emission | Euro II |
| Diesel 4-stroke direct injection engine,6-cylinder in-line with water | |
| Engine type | cooling,trubo-charging & inter-cooling |
| Displacement | 9.726 L /Diesel |
| Max. output | 371hp@2200rpm |
| Max. torque | 1500Nm @1100-1600 rpm |
| Compression ratio | 17:01 |
| Bore/Stroke(mm) | 126/130 |
| Specific fuel consumption | 198g/Kwh |
| Gear Model | HW19710 |
| Brand | SINOTRUCK |
| Type | 10 Forward& 2 Reverse |
| Fuel tank | 300L Iron Tank with locking fuel cap, fitted to the off side of the chassis |
| Front axle: | HF9 tons front axle with drum brake |
| Rear axle | HC16 16tons |
| Tipper Bucket | Body size（mm）:7200×2300×1800 |
| Capacity: 30CBM | |
| Thickness of body steel(mm): floor 8 side & back 4 | |
| Tipping type: Front tipping type( in front of the body with HYVA | |
| tipping system Holland technology ) |
