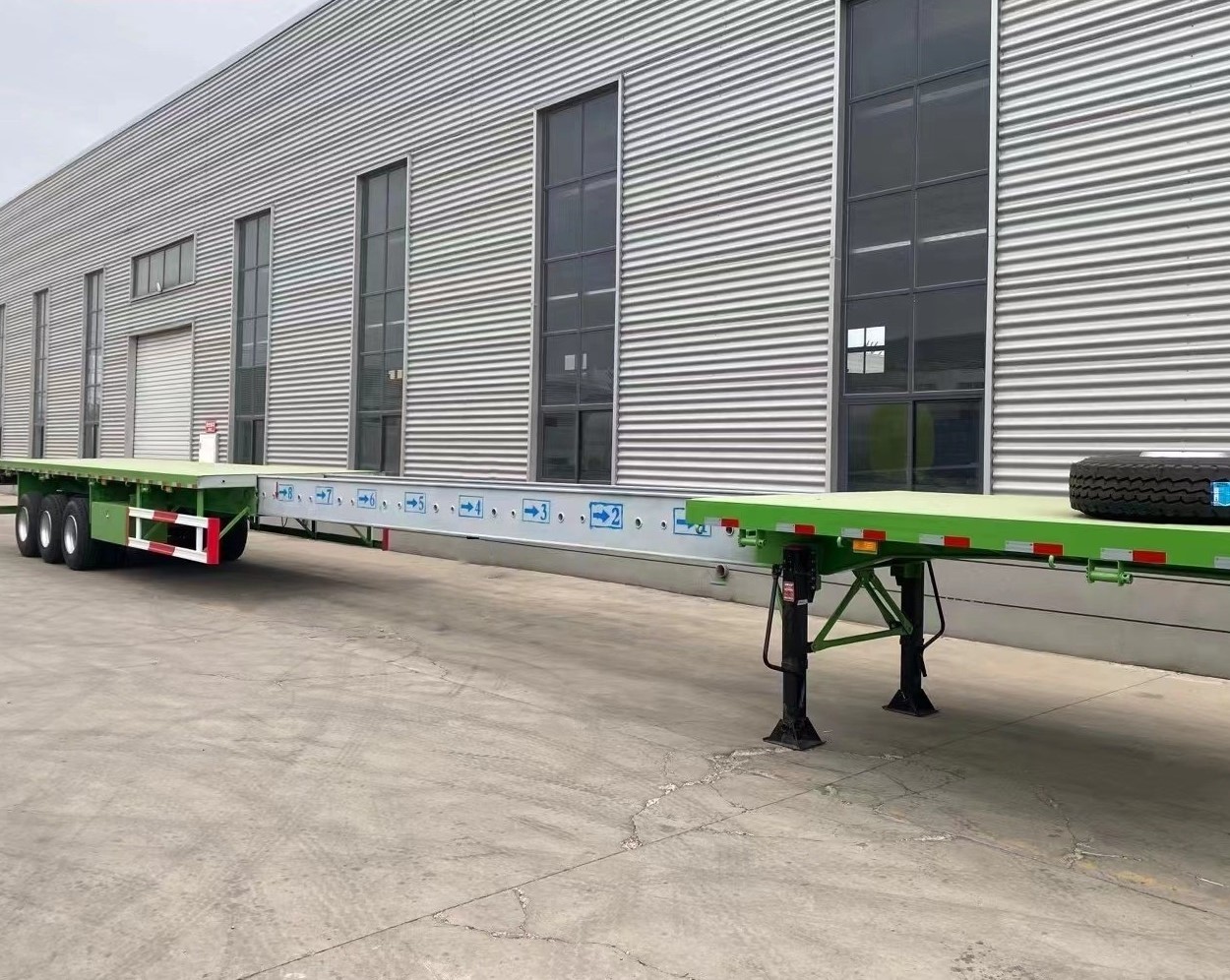

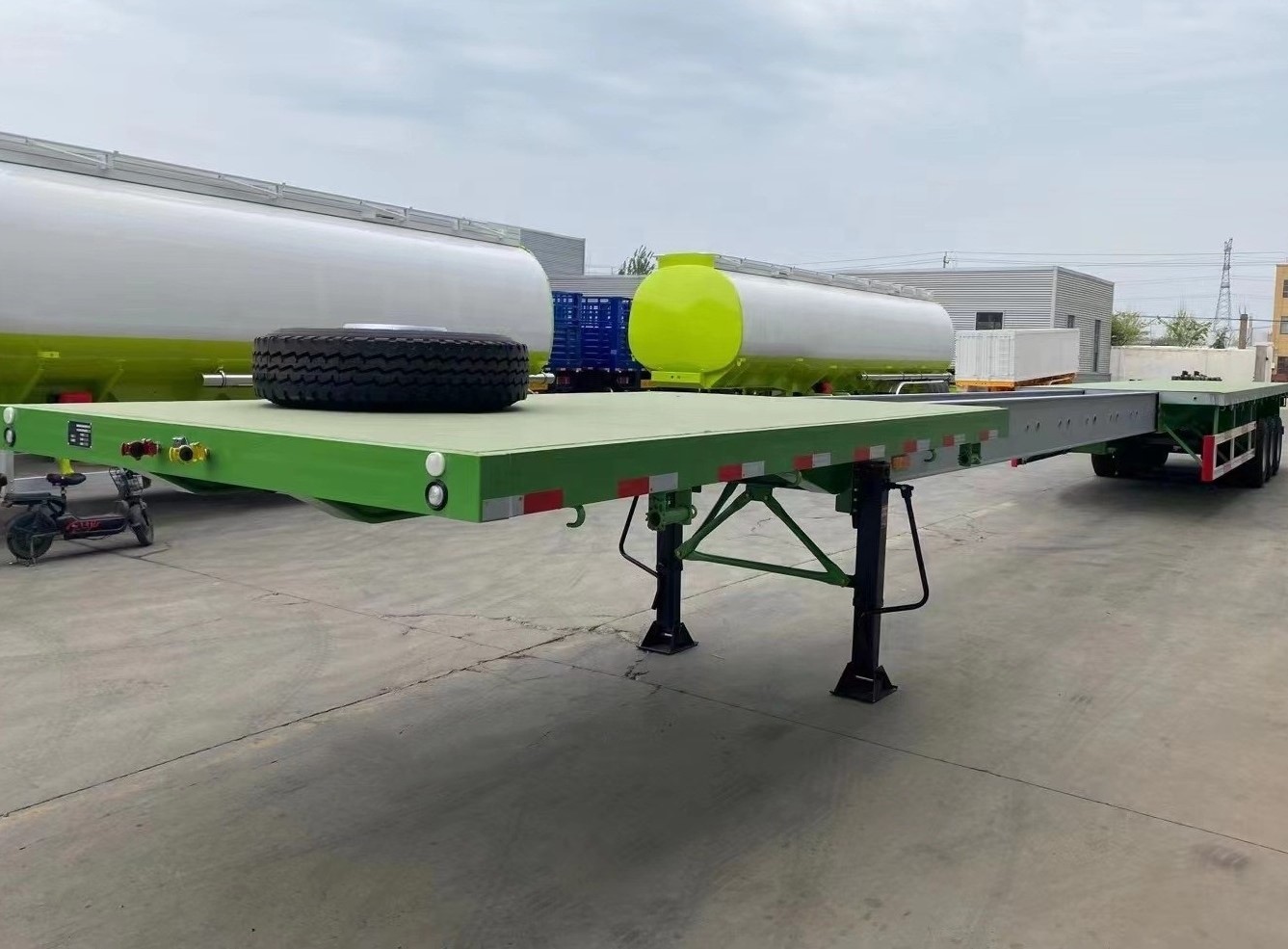

Extendable Semi Trailer Extensible Trailer Pull-out Flatbed Trailer

Trailer Model

Flatbed Trailer

Overall dimension

12500 *2500 * 1550mm((According to customer demand))

Tare Weight

5T--11T

Loading Weight

30-70T

Axle

13T/16T/20T BPW or FUWA or EAST

Wheelbase(mm)

6780+1310+1310 or other

Suspension system

Mechanical Spring or Air Suspension System

Steel Spring

90(W)mm*13(Thick)mm*10 Layer

Frame

Height: 450mm-520mm,

upper plate thickness is 16mm-25mm,

middle plate thickness is 8mm-12mm,

down plate thickness is 16mm-25mm;

Heavy duty and extra durability designed;

Opting for high tensile steel Q345B welded by

automatic Submerged-Arc processes Height I beam.

Tire Type

12R22.5, 11.00R20, 12.00R20, 315/80R22.5

Rim

6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20

Twist Locks

12 units (lifting type or Twist Screw Type) Optional locks for   loading containers

Traction Pin

2” or 3.5”

Spare Wheel Bracket

2 sets(Patent type)

Tool Box

2 sets(waterproof type)

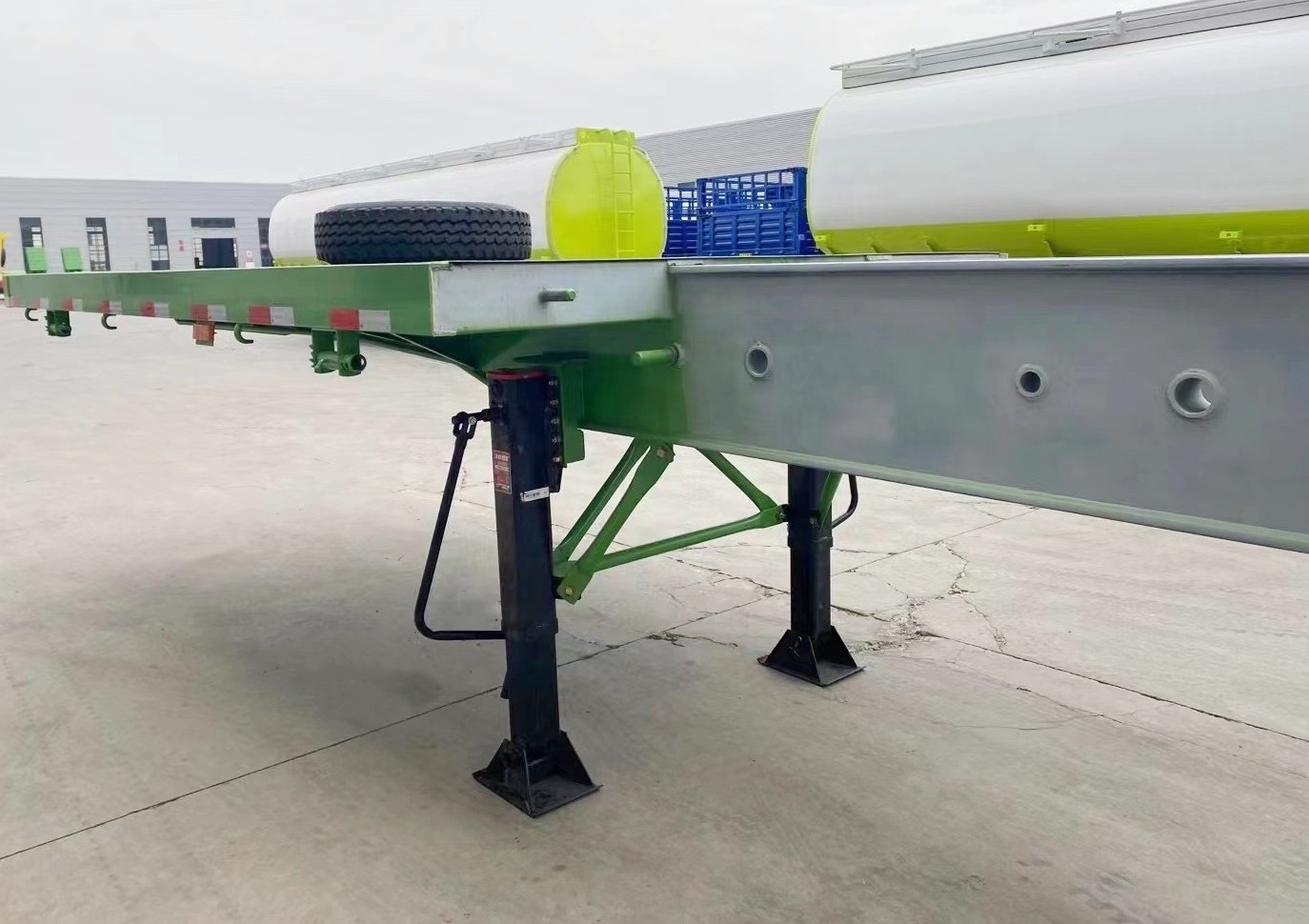

Landing Leg

heavy duty 28ton landing leg

Brake system

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE   brand);

One piece of 45L air tanks

Brake air chamber

Six double chamber

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector,side   lamp etc.

Electrical system

One set 6-core standard Cable.

Painting

Sandblasting, rust prevention, two primer, two finish

Shipping Terms

By bulk cargo carrier, RORO or 40HQ container.
