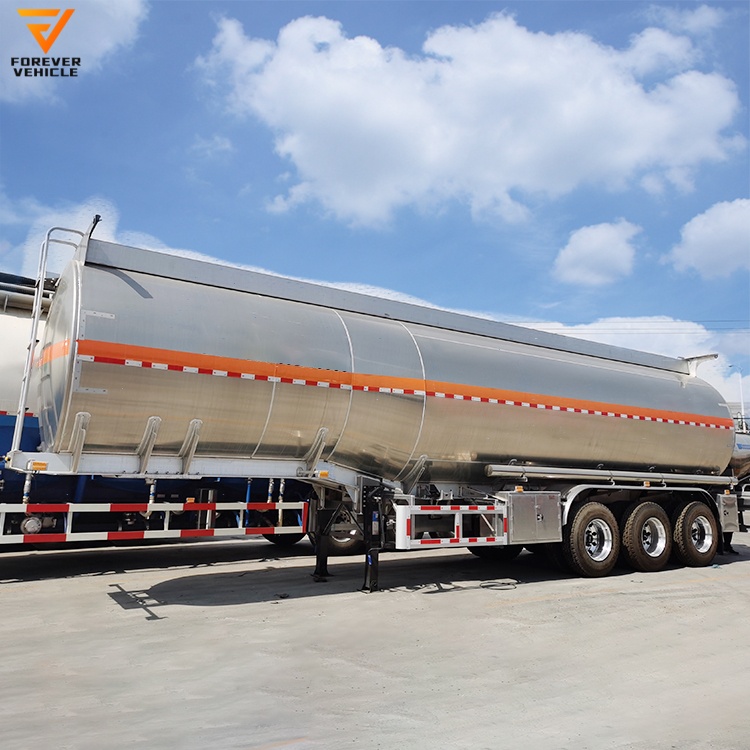

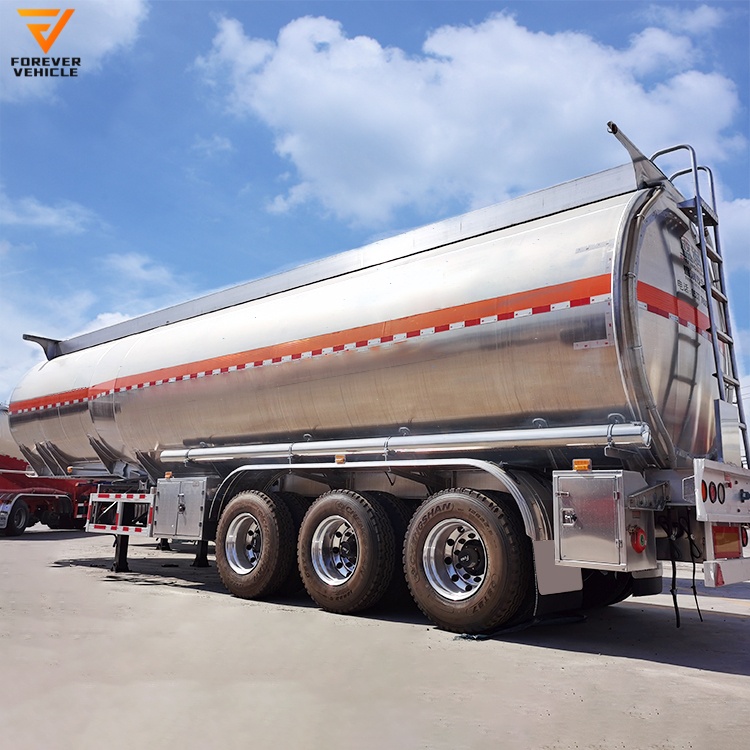

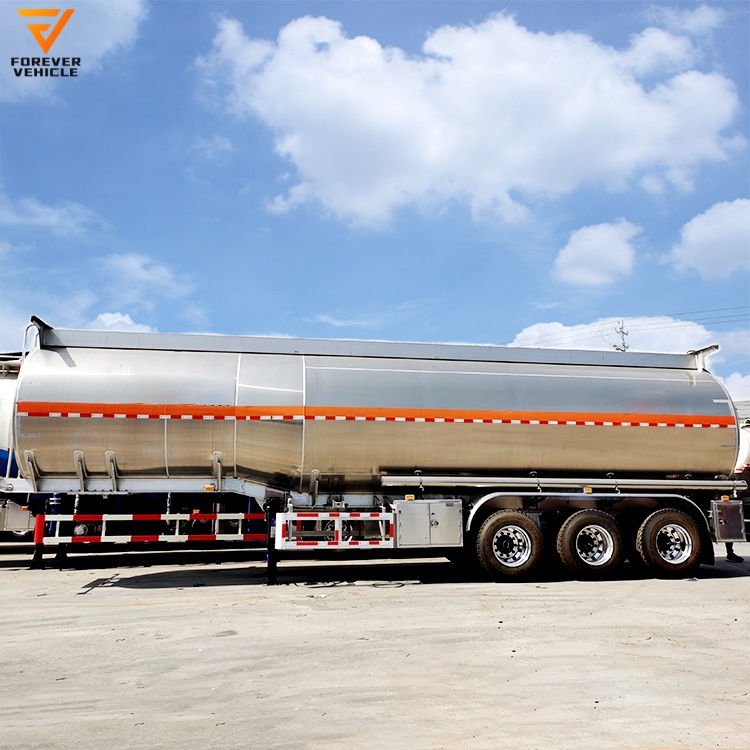

Factory Direct Sale Tri-axle 3 Axles 8000 Gallon Aluminum Fuel Tanker Trailer With Low Price

Outside Dimensions

11000mm-13000mmX2490mmX3950mm/3800mm-3900mm

Tare weight

About 8-12.8T

Total Volume

25m³-60m³

Material

1.Q235B/Q345B carbon steel
2.5XCT4aluminum5454 3.304 stainless steel

Tanker Body Material

1. 6mm/5mm Q235B/Q345B carbon steel
2. 7mm/6mm 5XCT4 aluminum 5454
3. 5mm/4mm 304 stainless steel

Axles

13T/16T, FUWA/BPW/HuaJing brand

Axle Number

2/3/4/ Axle or multi axle

Main Beam

Height: 450mm-520mm, upper plate thickness is 14mm-25mm,
middle plate thickness is 8mm-12mm,
down plate thickness is 16mm-25mm;
Material is Q345 manganese steel .

Tire

12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional)

King Pin

JOST brand 2.0 or 3.5 inch bolts type or Welding type

Support legs

JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed )

Rear ladder

Dismountable or foldaway

Wheelbase

8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm

Spring leaf

8/10/12/16 pieces

Manhole Cover

2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards

Brake Chamber

6 double brake chamber

Electrical System

24V, 7core socket, lights according to European standards

Accessory

One tooling boxes ,Two spare tire carrier, Two fire extinguisher

Other tools

A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual)

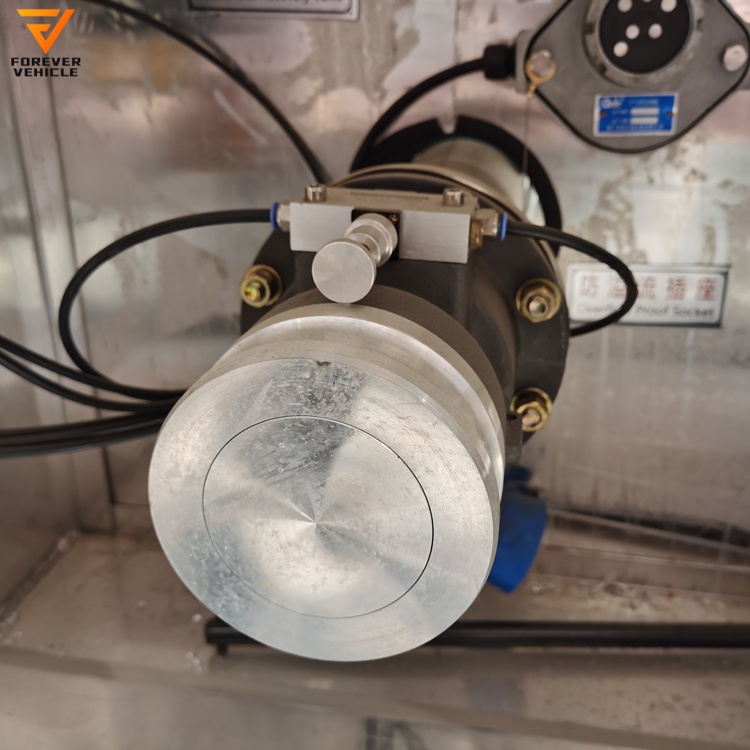

Discharge mouth

diameter is 280mm

Receptacle

7ways (7wire harness)
