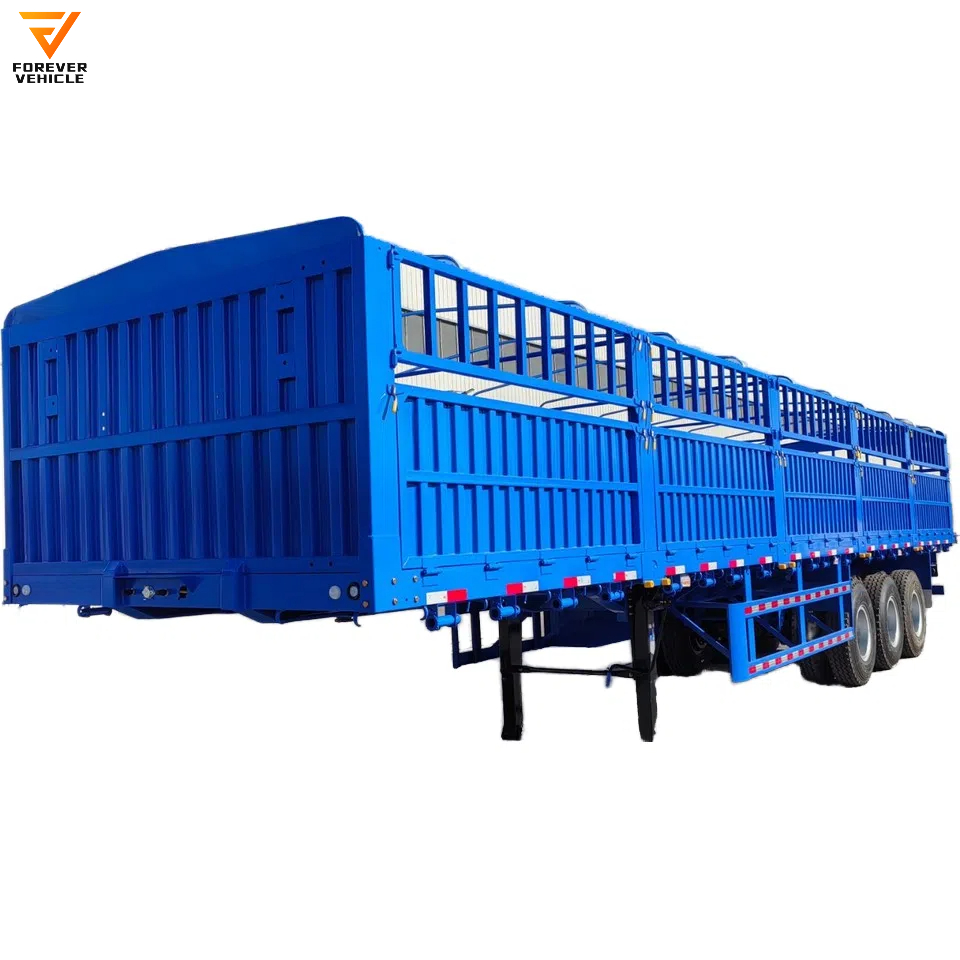

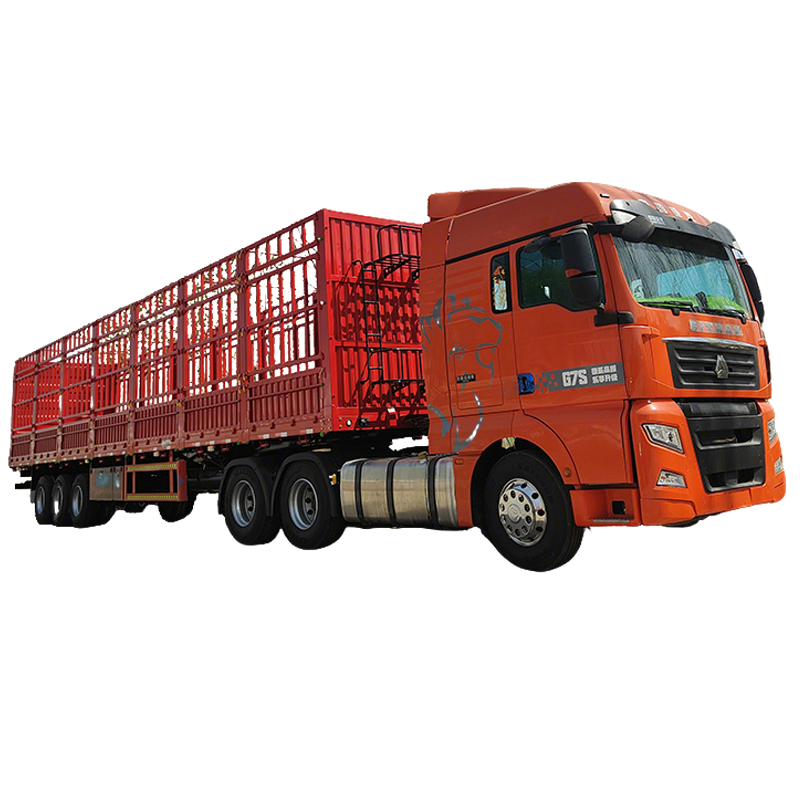

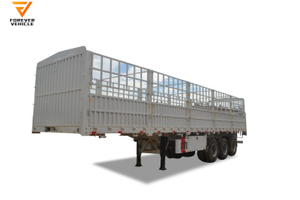

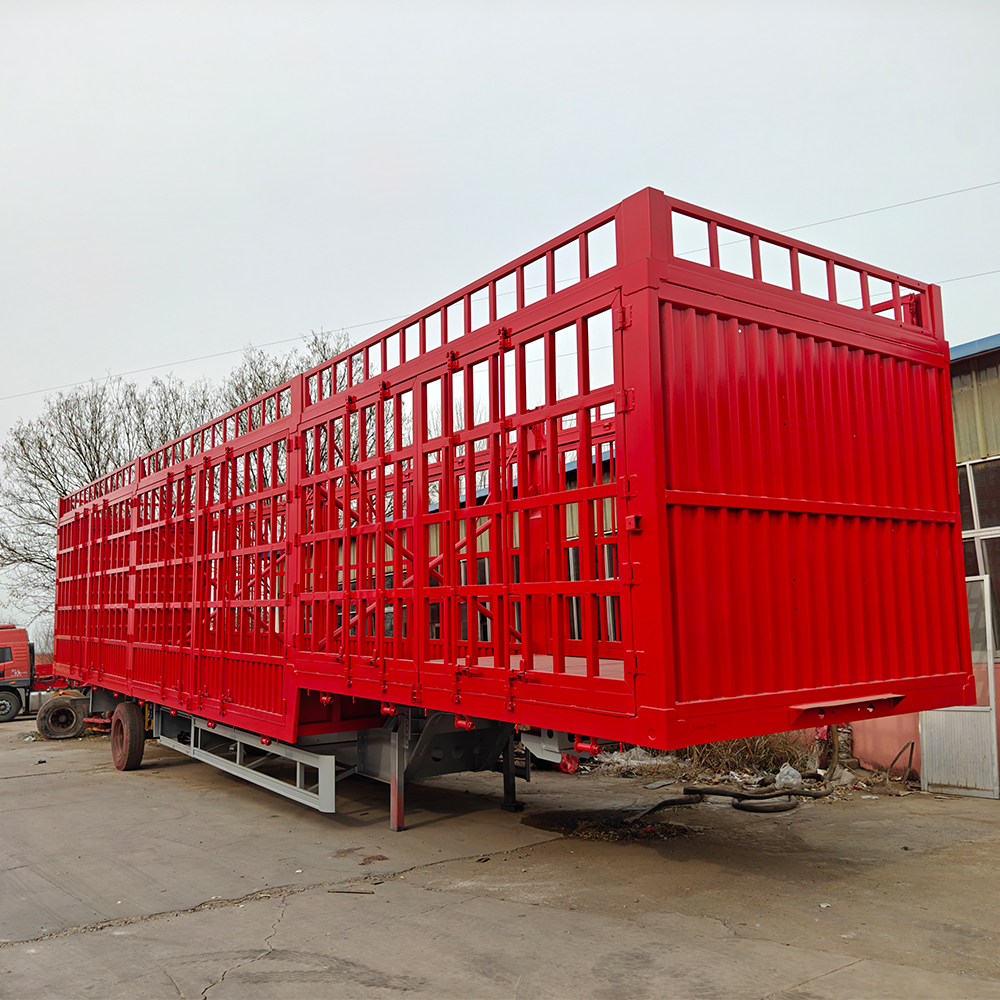

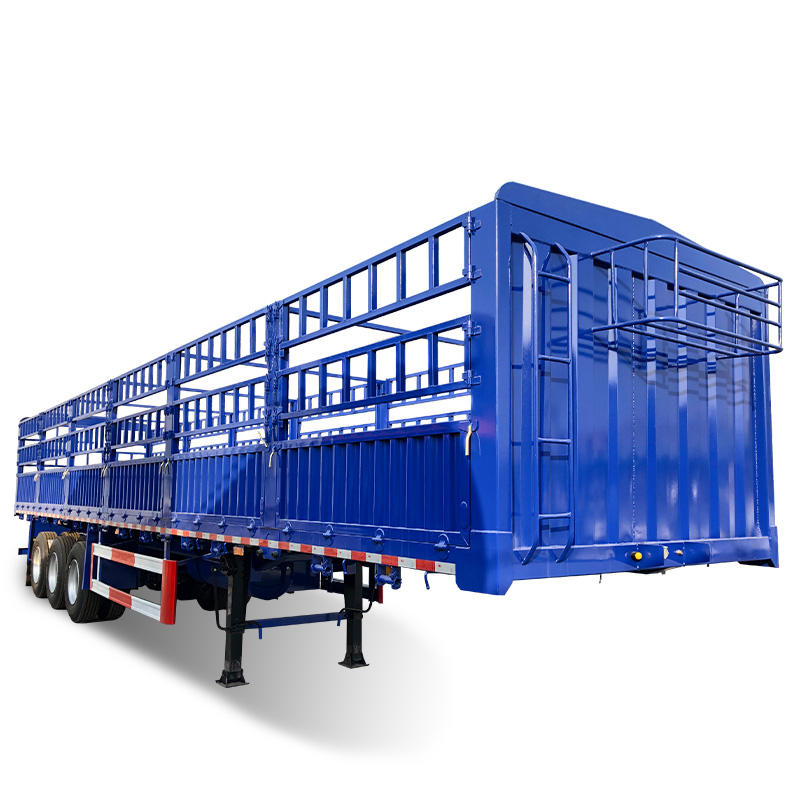

High Quality 3 Axles 40 FT Load 30-60Ton Animal Transport Goods Dropside Fence Stake Cargo Semi Trailer From China
| Quantity: | |
|---|---|
| 1 | Type | Fence Semi trailer | ||
| 2 | Product Name | Side Wall Cargo Semitrailer | ||
| 3 | Cargo Body | Body Dimension | 12300x2450x1800mm | |
| External Dimension | 12500x2600x3600mm | |||
| Twist Lock | 12 container locks | |||
| Baseplate | Corrugated Steel | |||
| 4 | Tare Weight | 7400kg | ||
| 5 | Payload | 64t | ||
| 6 | Running System | Axles | FUWA ,BPW brand,13t Good quality axles | |
| Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam | |||
| Tires | Linglong,brand, Double Coin, 11.00R20 , 12.00R20,12unit | |||
| 7 | Ladder | Manually operated or Hydraulic type | ||
| 8 | Braking System | Dual lines pneumatic brake system, | ||
| Relay Valve; KORMEE ABS braking system | ||||
| 9 | Frame | Main Beam | Q345B steel,Height 500, upper 10mm, | |
| lower 12mm. Mid web 8mm | ||||
| 10 | King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||
| 11 | Landing Gear | YAHUA Brand Single side operation or double side operation, | ||
| Static capacity 28Ton | ||||
| 12 | Electrical & Paint | Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Lights & Reflectors | 24V, 7 lines | |||
| Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |||
| Accessorise | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER | |||
| TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES | ||||
| 1 | Type | Fence Semi trailer | ||
| 2 | Product Name | Side Wall Cargo Semitrailer | ||
| 3 | Cargo Body | Body Dimension | 12300x2450x1800mm | |
| External Dimension | 12500x2600x3600mm | |||
| Twist Lock | 12 container locks | |||
| Baseplate | Corrugated Steel | |||
| 4 | Tare Weight | 7400kg | ||
| 5 | Payload | 64t | ||
| 6 | Running System | Axles | FUWA ,BPW brand,13t Good quality axles | |
| Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam | |||
| Tires | Linglong,brand, Double Coin, 11.00R20 , 12.00R20,12unit | |||
| 7 | Ladder | Manually operated or Hydraulic type | ||
| 8 | Braking System | Dual lines pneumatic brake system, | ||
| Relay Valve; KORMEE ABS braking system | ||||
| 9 | Frame | Main Beam | Q345B steel,Height 500, upper 10mm, | |
| lower 12mm. Mid web 8mm | ||||
| 10 | King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||
| 11 | Landing Gear | YAHUA Brand Single side operation or double side operation, | ||
| Static capacity 28Ton | ||||
| 12 | Electrical & Paint | Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Lights & Reflectors | 24V, 7 lines | |||
| Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |||
| Accessorise | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER | |||
| TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES | ||||
