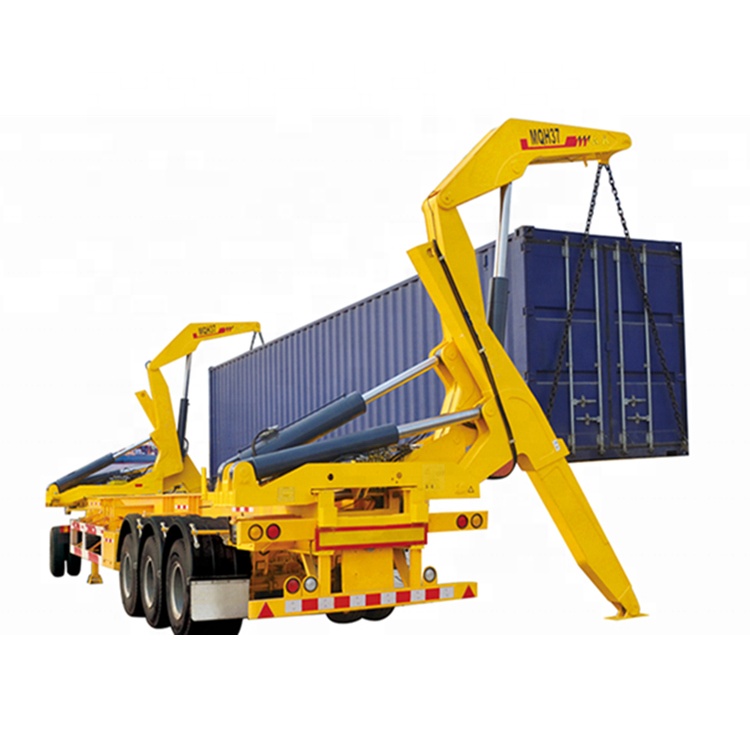

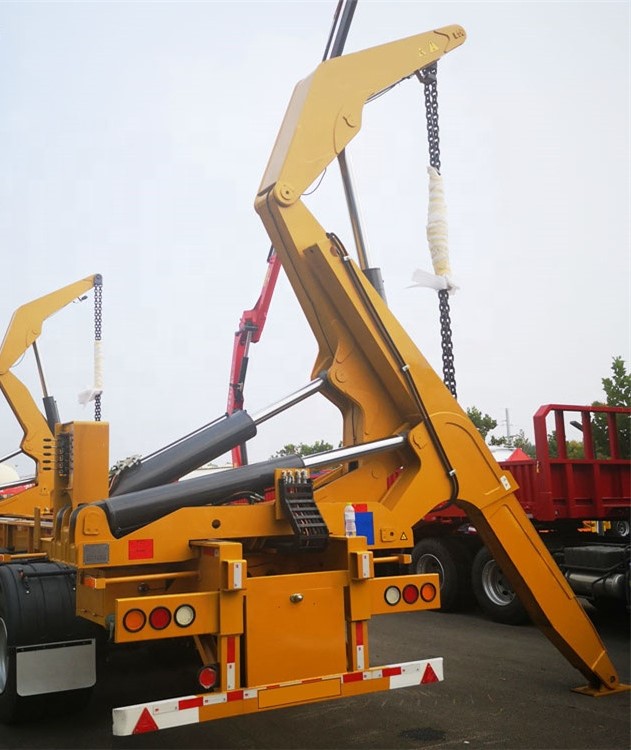

High Quality 37 Ton Side Lifter Side Loader Container Trailer Lift Truck Trailer Skeleton Semi Trailer
Customizable Color Options: Our customers can choose from a variety of colors to match their preferences, allowing for a personalized touch to their vehicle.
Advanced Safety Features: Equipped with an ABS brake system, this trailer prioritizes road safety and stability, providing peace of mind for the driver and cargo.
Efficient Loading and Unloading: The Jost brand two-speed landing gear enables smooth and efficient loading and unloading of heavy equipment, saving time and resources.
Durable and Versatile: With a 37-ton max payload capacity, this trailer is suitable for transporting a wide range of heavy equipment machinery, making it an ideal investment for industries requiring heavy-duty transportation.
| Quantity: | |
|---|---|
Container Side Lifter Semi-Trailer | |
Max. lifting capacity(kg) | 37000 |
Max. working range(mm) | 4000 |
Max. stabilizer outreach(mm) | 3200 |
Curb mass (kg) | 14500 |
Mass of sidelifter (kg) | 7250 |
Maximum gross mass (kg) | 40000 |
Outline dimension of semi-trailer(L×W×H)(mm) | 14100×2500×4000 |
Outline dimension of side-lifter(L×W×H) (mm) | 1020×2500×2490 |
Trailer Overall Dimension | 14100x2480x1510mm empty load |
Loading weight(kgs) | 50000 |
Wheelbase | 1350 |
Tire | 13/11.00r20 |
Braking | ABS |
28 Tons Two Speed,JOST/Other Brand | 28 Tons Two Speed,JOST/Other Brand |
Twist Lock | Twist Lock |
4 Sets | 12 Sets |
Vehicle Painting | Vehicle Painting |
Electrophoresis paint | Electrophoresis paint |
Container Side Lifter Semi-Trailer | |
Max. lifting capacity(kg) | 37000 |
Max. working range(mm) | 4000 |
Max. stabilizer outreach(mm) | 3200 |
Curb mass (kg) | 14500 |
Mass of sidelifter (kg) | 7250 |
Maximum gross mass (kg) | 40000 |
Outline dimension of semi-trailer(L×W×H)(mm) | 14100×2500×4000 |
Outline dimension of side-lifter(L×W×H) (mm) | 1020×2500×2490 |
Trailer Overall Dimension | 14100x2480x1510mm empty load |
Loading weight(kgs) | 50000 |
Wheelbase | 1350 |
Tire | 13/11.00r20 |
Braking | ABS |
28 Tons Two Speed,JOST/Other Brand | 28 Tons Two Speed,JOST/Other Brand |
Twist Lock | Twist Lock |
4 Sets | 12 Sets |
Vehicle Painting | Vehicle Painting |
Electrophoresis paint | Electrophoresis paint |
