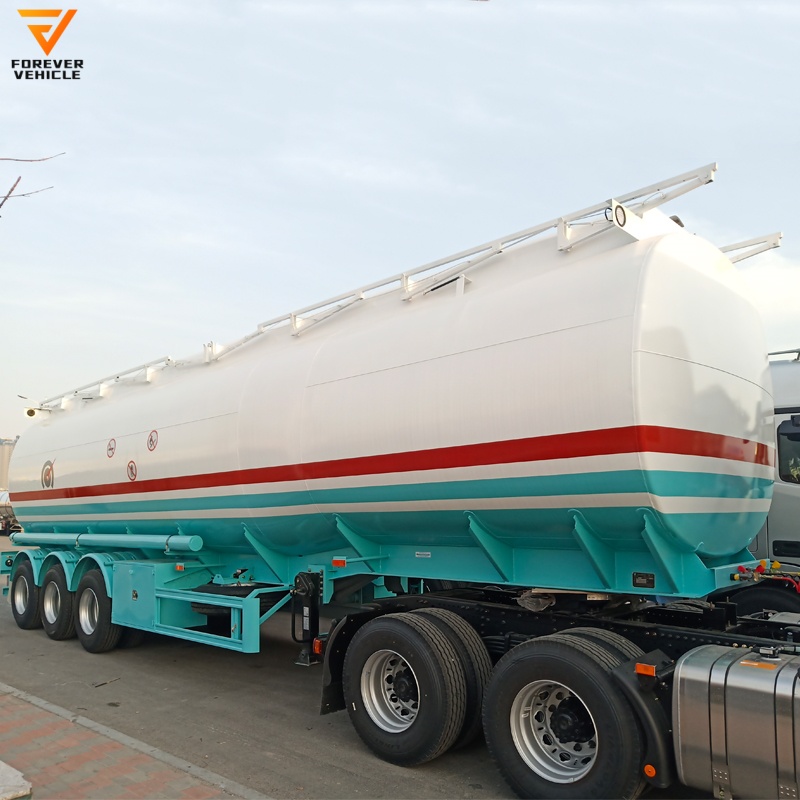

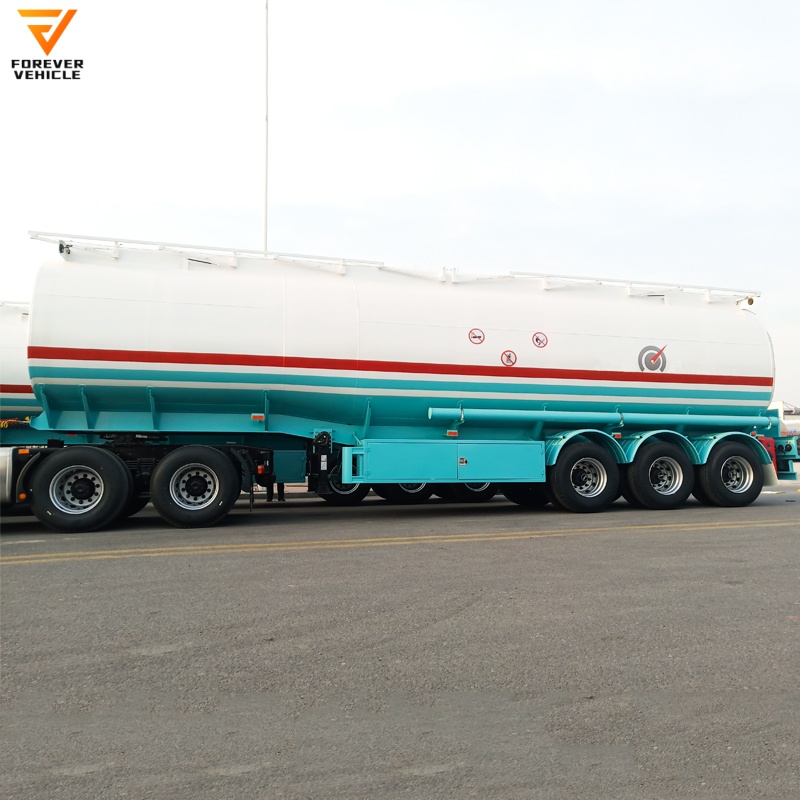

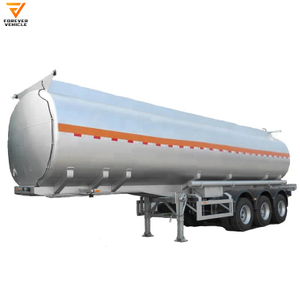

High Quality 50000 Liter Fuel Tank Semi Traile Crude Oil Tanker Lpg Tanker Trailers for Sale
| Quantity: | |
|---|---|
| roduct Name | 3 Axle 45000 Liters Oil Fuel Tank Trailer | ||
| Overall Dimension(Lx W xH)(mm) | 11900x2500x3900mm | ||
| Tank capacity( CBM ) | 40000L to 60000L | ||
| Loading Weight( KG) | 45 Tons to 70 Tons | ||
| Medium | Fuel/other liquid(corrosive materials) | ||
| Tank body thickness(mm) | carbon steel Q235 5mm steel | ||
| End plate | carbon steel Q235 6mm steel | ||
| Main beam | Opting for high tensile steel Q345B welded by automatic submerged-arc processes | ||
| Axle Brand | BPW/FUWA/ZY 13ton axle | ||
| Axle Number | 3 or 4 | ||
| Compartment | 3 or 5 / 6 as customer need | ||
| Manhole covers | 500mm manhole cover .3 sets with 3 breather valve. | ||
| Suspension system | Leaf spring suspension | ||
| Steel Spring | 10/10/10 leaf spring suspension | ||
| Tool Box | 1 Standard | ||
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | ||
| Side Guard | Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable. | ||
| Packing | NUDE, Polish with wax before shipping | ||
| roduct Name | 3 Axle 45000 Liters Oil Fuel Tank Trailer | ||
| Overall Dimension(Lx W xH)(mm) | 11900x2500x3900mm | ||
| Tank capacity( CBM ) | 40000L to 60000L | ||
| Loading Weight( KG) | 45 Tons to 70 Tons | ||
| Medium | Fuel/other liquid(corrosive materials) | ||
| Tank body thickness(mm) | carbon steel Q235 5mm steel | ||
| End plate | carbon steel Q235 6mm steel | ||
| Main beam | Opting for high tensile steel Q345B welded by automatic submerged-arc processes | ||
| Axle Brand | BPW/FUWA/ZY 13ton axle | ||
| Axle Number | 3 or 4 | ||
| Compartment | 3 or 5 / 6 as customer need | ||
| Manhole covers | 500mm manhole cover .3 sets with 3 breather valve. | ||
| Suspension system | Leaf spring suspension | ||
| Steel Spring | 10/10/10 leaf spring suspension | ||
| Tool Box | 1 Standard | ||
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | ||
| Side Guard | Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable. | ||
| Packing | NUDE, Polish with wax before shipping | ||
