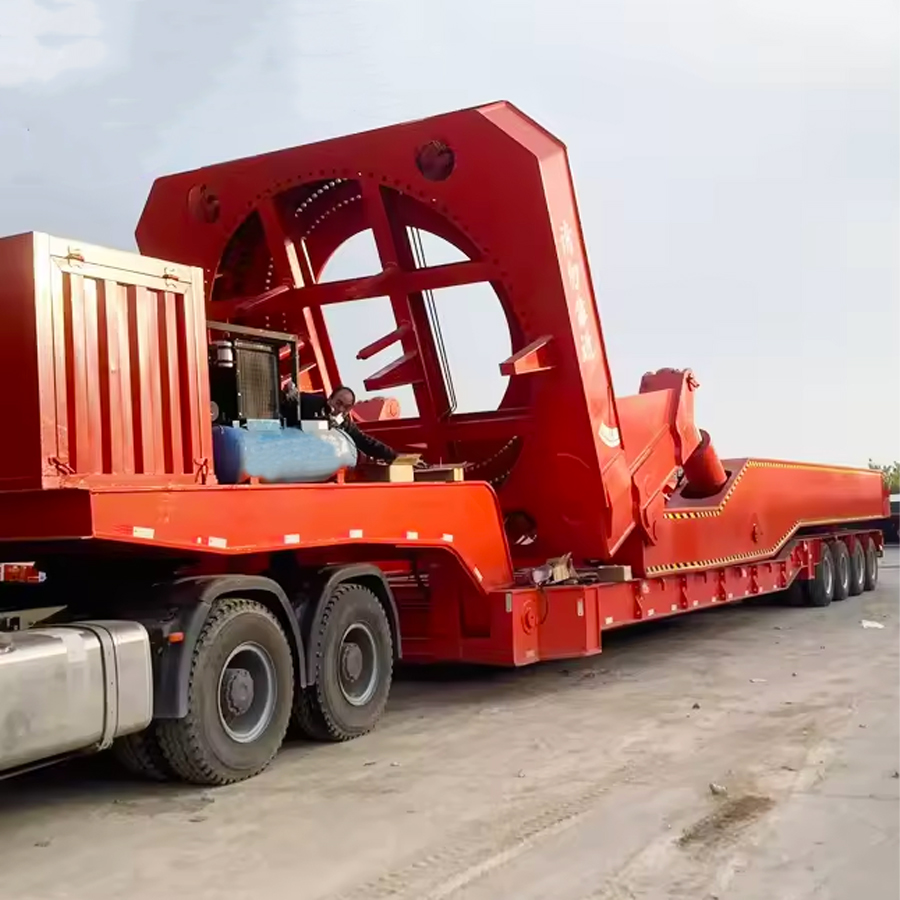

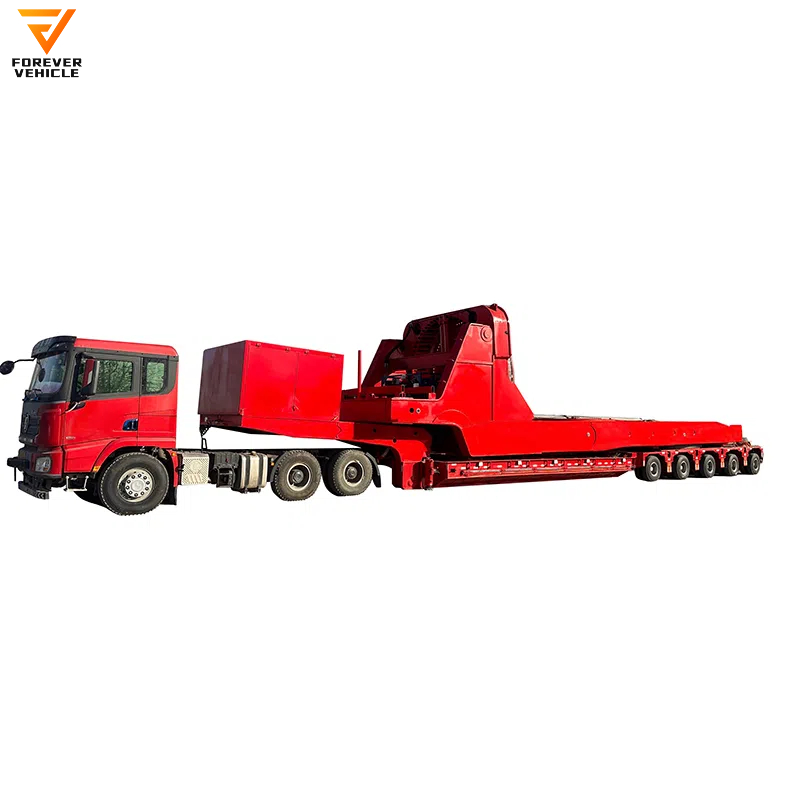

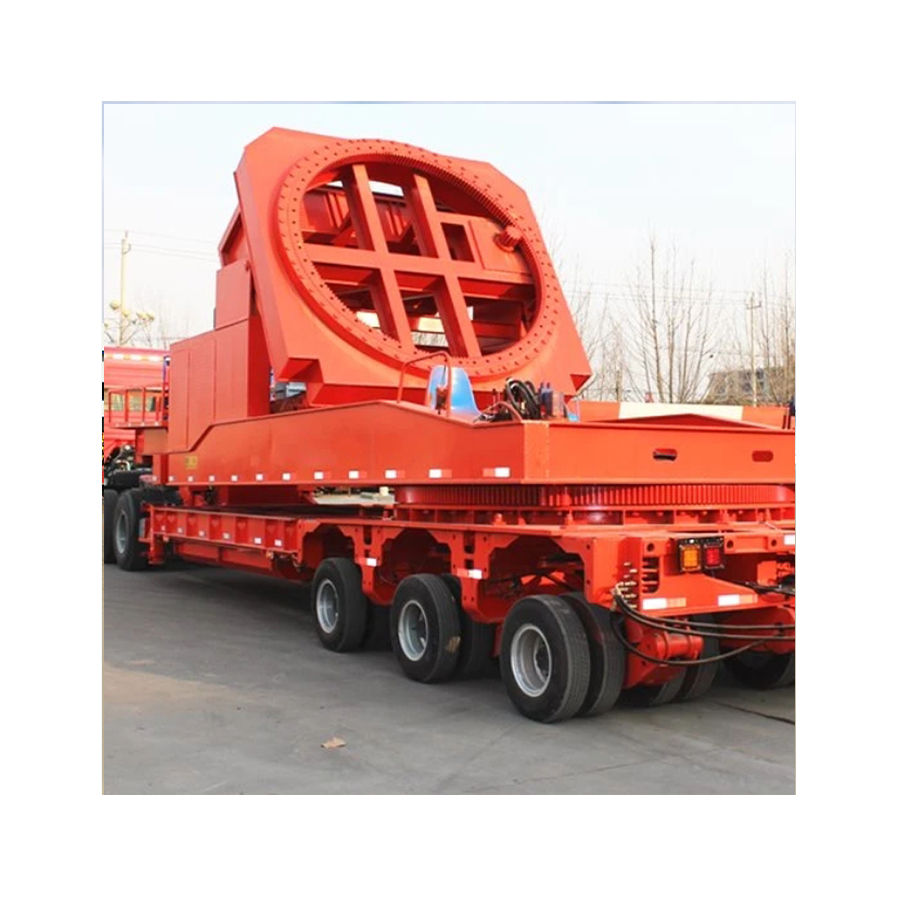

Lowbed Hydraulic Trailer Extendable Steel Semitrailer for Wind Power Blades Wind Tower Transport-Available
| Quantity: | |
|---|---|
| Dimension(L x W x H)(mm) | 13000*2500*1750(As arranged) |
| Wheelbase(mm) | 8580+1310+1310 |
| Curb Weight(KG) | 8000 |
| Loading capacity(KG) | 60000 |
| Axle Brand | FUWA or BPW 13/16/20Ton Axle |
| Axle Number | 3 |
| Rim type | 9.0 22.5 x12 pcs |
| Tyre type | 12.00R20 x 12 pcs |
| Suspension system | Mechanical suspension/ pneumatic suspension |
| Steel Spring | 10/10/10 |
| Frame | The height of the beam(Carling) is 500mm,upper plate is18mm,down plate is 20mm,middle plate is 14mm.according to the buyer’s requirement |
| Platform plate | 3-8mm Diamond Plate |
| Traction Pin | JOST 90# (3.5'') or 50#(2.0'') |
| Landing Leg | 28T load landing leg |
| Stair Folding Rear | Two pieces |
| Ramp | The ramp is powered by a hydraulic pump or manual operation |
| Brake system | Dual Line braking system Four double and two single chamber ,Valve WABCO Brand |
| Electrical system | 24V,7 Pole plug Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| Tool box | One pieces(1000*500*500mm),equipped with 1 unit tire spanner,1 unit gudgeon sleeve and 1unit cranking bar |
| Painting | Color by customer’s requirement |
| Packing | Polish with wax before shipping |
