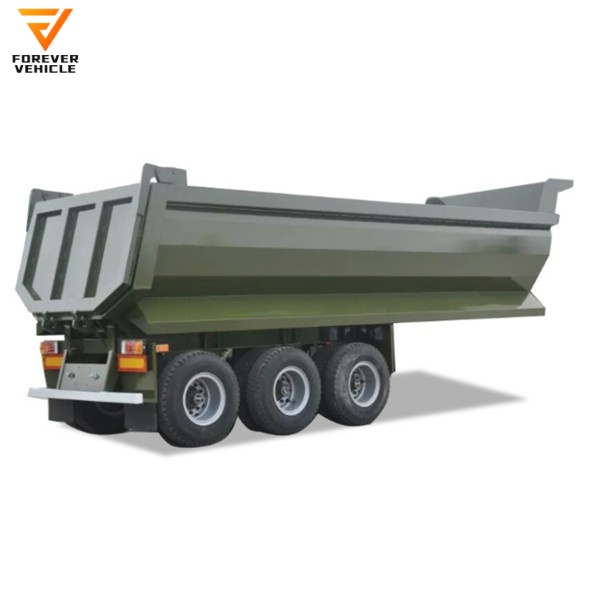

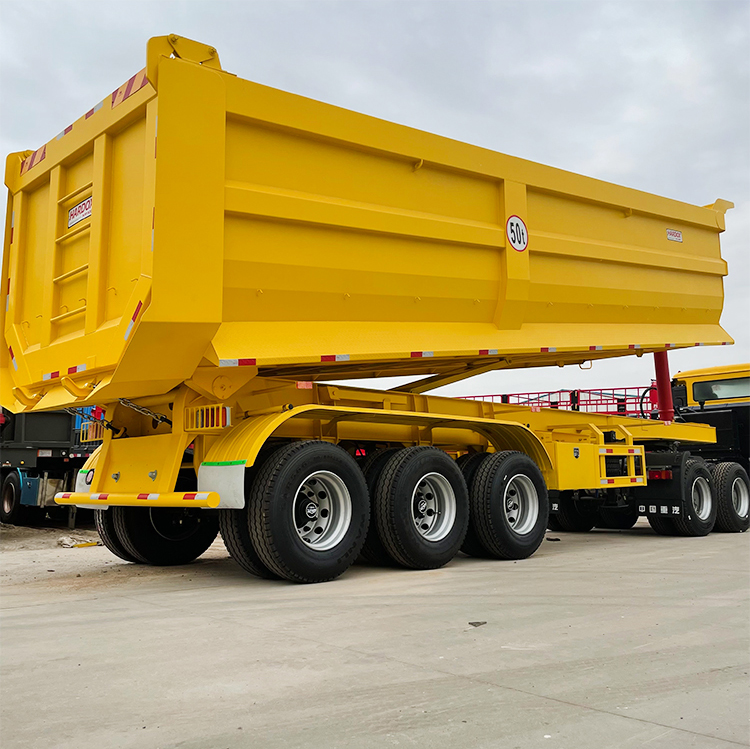

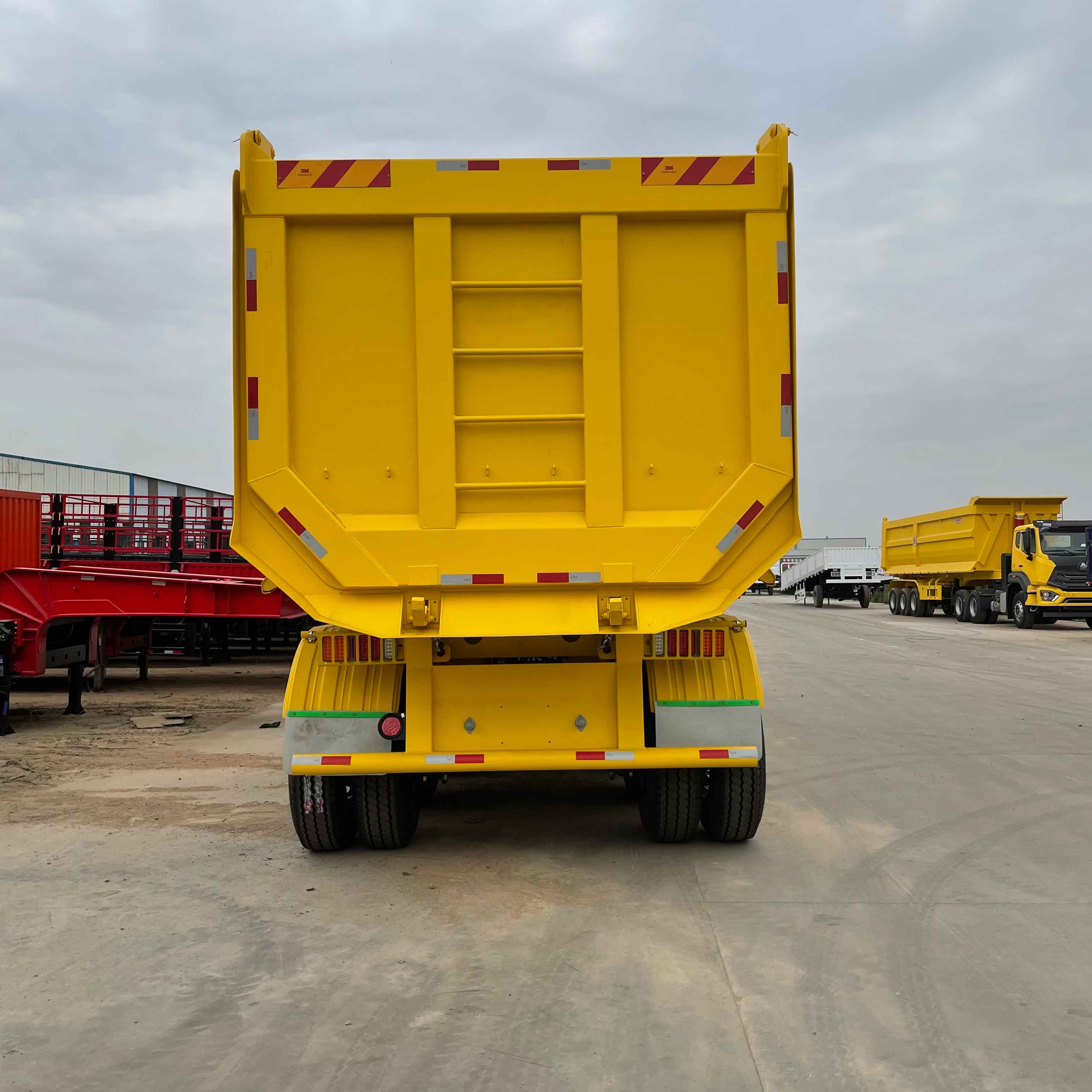

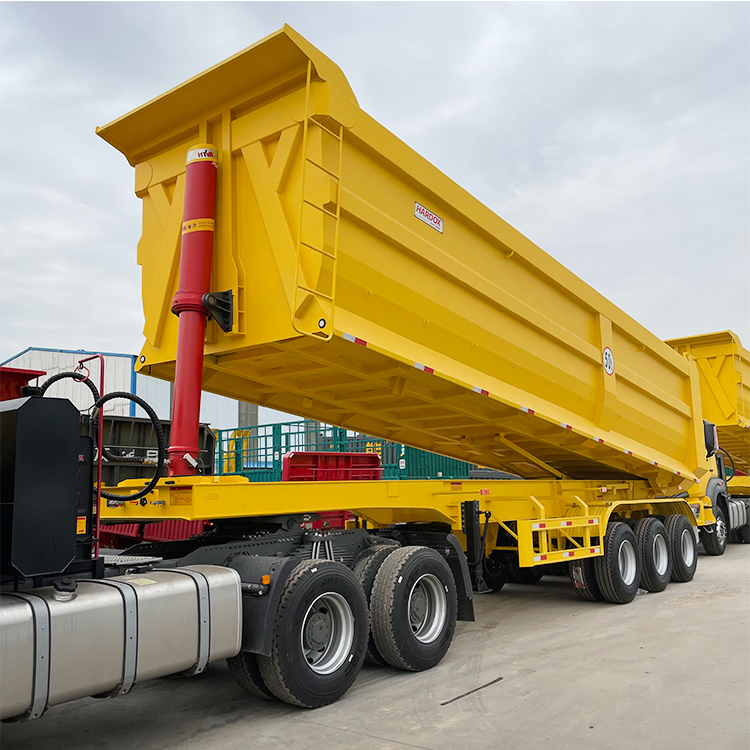

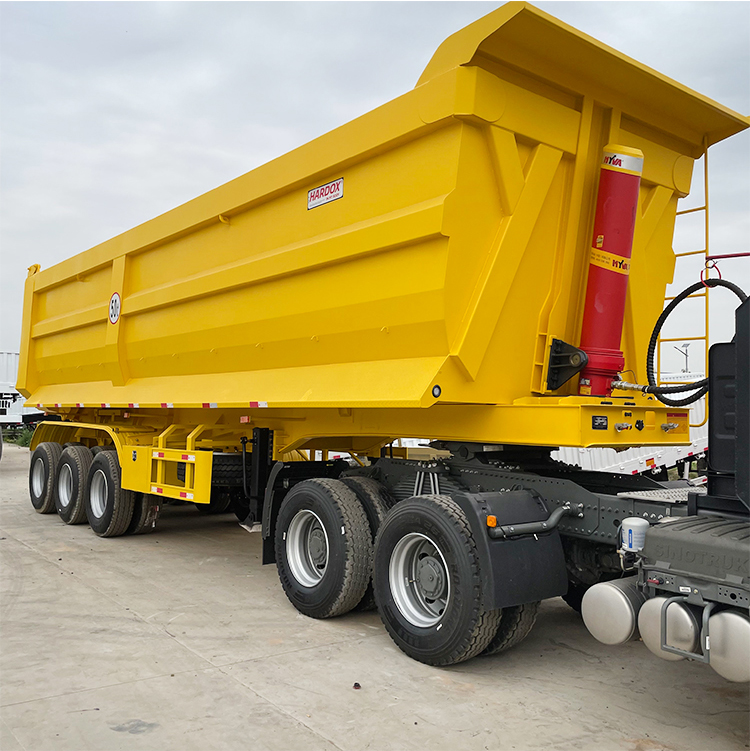

3 Axles 40t, 50t, 60t Heavy Loading Rear Dump Trailer Heavy Duty Dumping Semitrailer
| Quantity: | |
|---|---|
Robust Structure
Designed with a sturdy frame and advanced construction techniques to ensure reliability on various road conditions.
Spacious Load Capacity
Utilizes high-strength cold-rolled corrugated steel plates for the box body, providing ample space for large cargo
without the need for a skeleton structure.
Versatile Unloading System
Fitted with multi-cylinder lift and self-rescue tank for versatile functions like multi-pulse and heavy-load support.
Easy to operate with choices for single or dual-side unloading.
Product Specification | ||||
1 | Type | Semitrailer | ||
2 | Product Name | Dump Semitrailer | ||
3 | Dimension | 9500x3000x1600mm | ||
4 | Tare Weight | 9620kg | ||
5 | Payload | 41t | ||
6 | Running System | Axles | FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles | |
Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam | |||
(we can choose the Air suspension depend on customer requirement) | ||||
Tires | Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit | |||
7 | Hydraulic Tipping System | HYVA Tipping System | ||
8 | Braking System | Dual lines pneumatic brake system, WABCO Emergency | ||
Relay Valve; KORMEE ABS braking system | ||||
9 | Frame | Main Beam | Q345B steel,Height 500, upper 20mm, | |
lower 22mm. Mid web 16mm | ||||
Cross Beam | Mild Alloy Q235 | |||
10 | King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||
11 | Landing Gear | FUWA, JOST Brand Single side operation or double side operation, | ||
Static capacity 28Ton | ||||
12 | Electrical & Paint | Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Lights & Reflectors | 24V, 7 lines | |||
Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |||
Accessories | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER | |||
TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES | ||||
