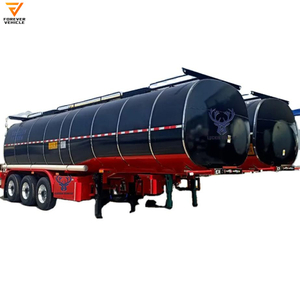

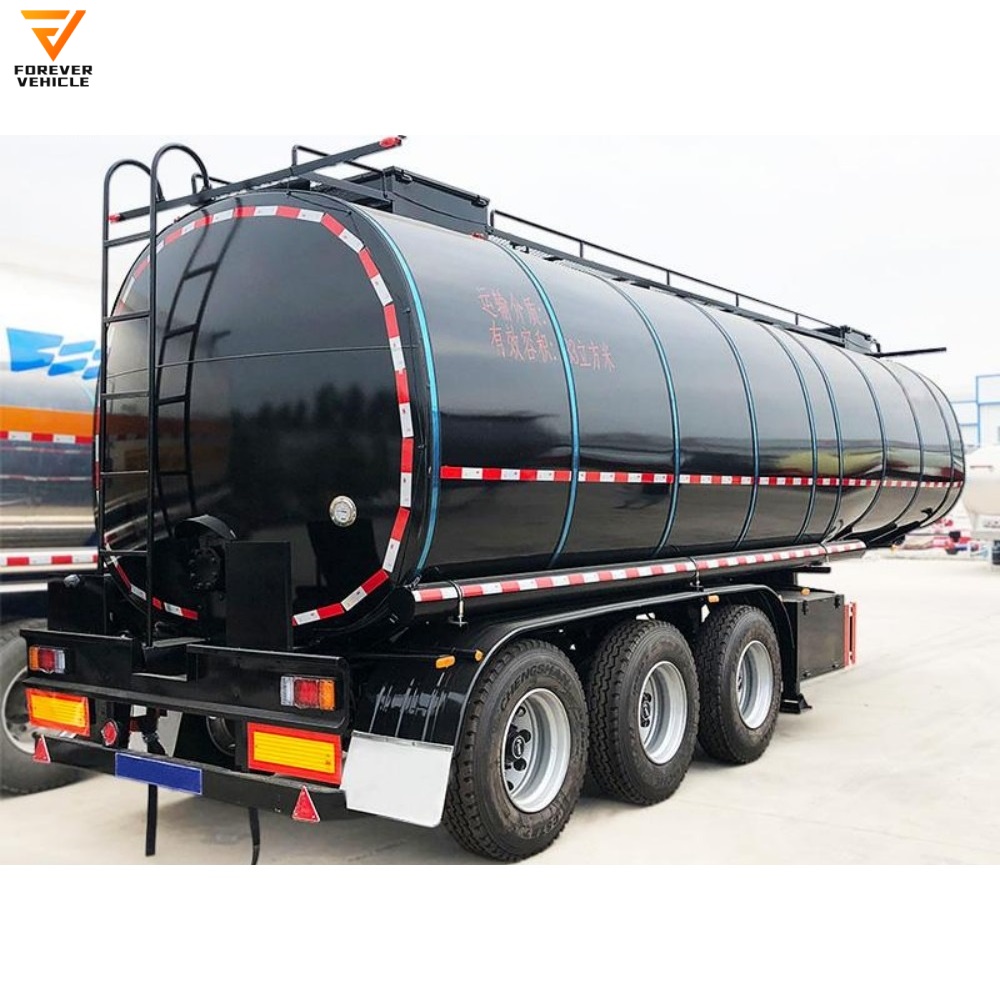

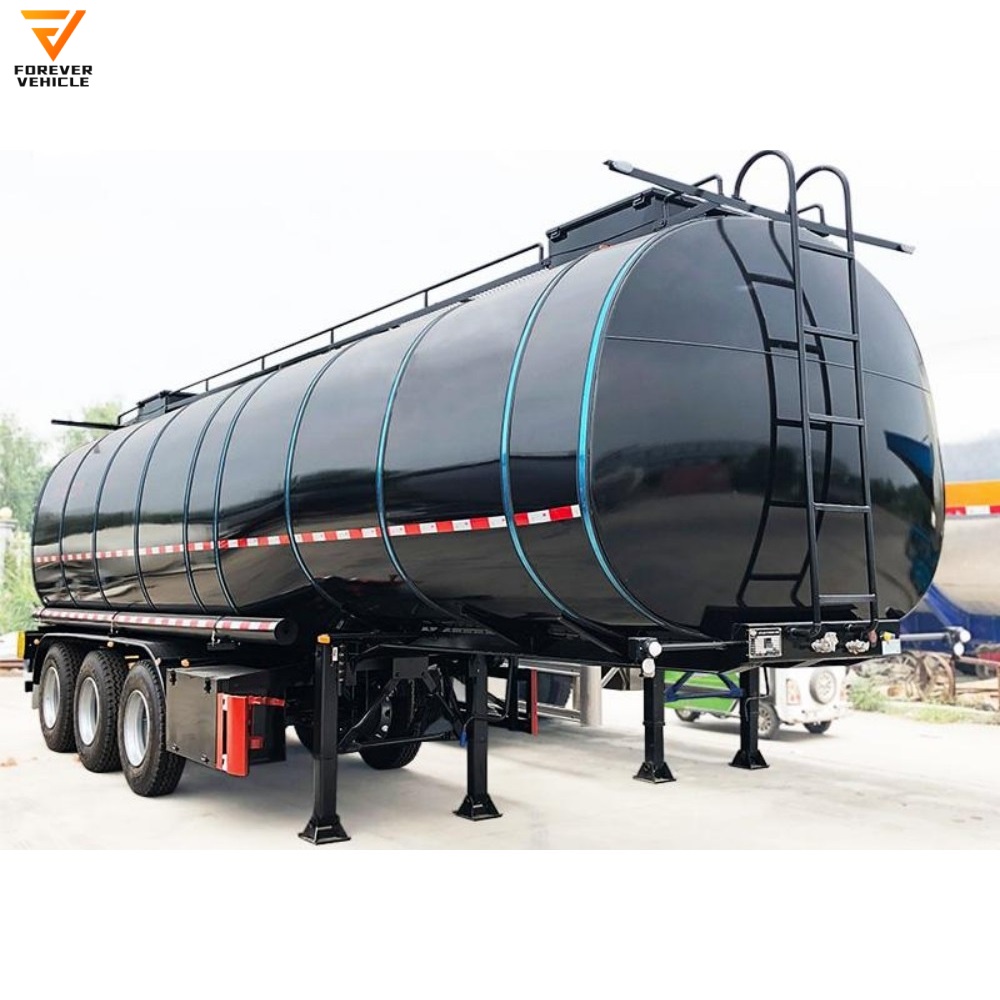

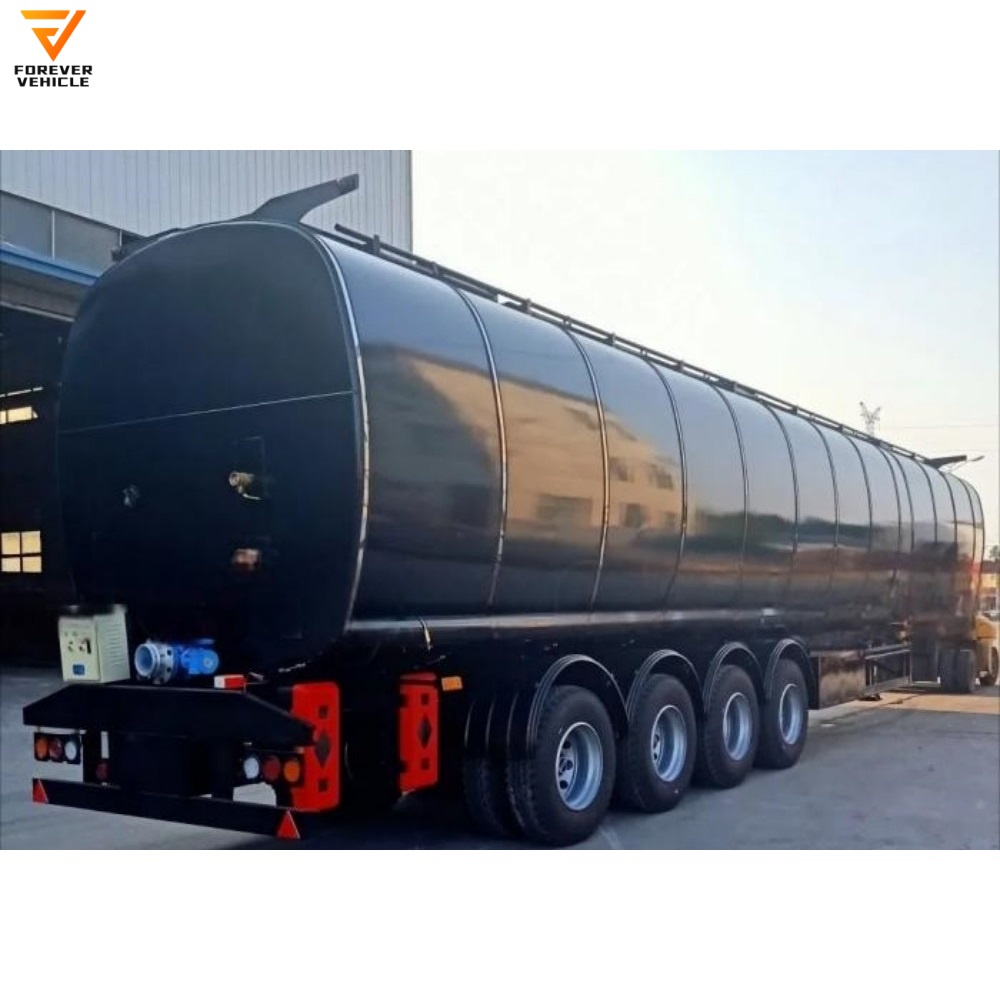

Asphalt Tanker Liquid Bitumen Transport Fuel Tank Trailer Sale of Construction Machinery Bitumen Tanker
| Quantity: | |
|---|---|
| Volume(CBM) | 50CBM (Size can be Accustomed) |
| Medium | Bitumen |
| Overall Dimension(L*W*H)(mm) | 12800*2500*3850 |
| Shape of the tank body | Straight |
| Tank body thickness | 5mm/Q235B |
| Dish end thickness | 5mm/Q235B |
| Baffle | 4mm/Q235B |
| Dish end shape | Oval |
| Compartment(piece) | One |
| Manhole | Two(500mm in dimension) |
| Discharge valve(piece) | Two |
| Valve form | Ball vale |
| Valve specification | 6” |
| Insulation or not | Yes |
| Running part | |
| 1,Axle number&specification:13T FUWA axle,3 pieces,with ABS | |
| 2,Suspension specification&number:Leaf spring 13*90*10 6 pieces | |
| 3,Kingpin:90# | |
| 4,Relay valve:Copy the American standard | |
| 5,Landing gears:20T | |
| 6,Tire specification&number:Brand Triangle 12R22.5,12 pieces | |
| 7,Rim specification&number:9.0*22.5,12 pieces | |
| 8,Break chamber:single/double/double,6 pieces | |
| Electric System | |
| 1.Voltage: 24v 2.Receptacle: 7 ways (7 wire harness) 3.Tail lamp with turn signal, brake light & reflector, side lamp etc | |
| Accessories | |
| 1,Fire extinguishing | 8kg*2 pieces |
| 2,Tool box | One piece*1.5m |
| 3,Spare wheel carrier | One piece |
