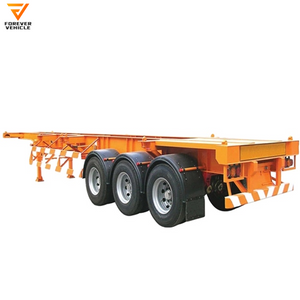

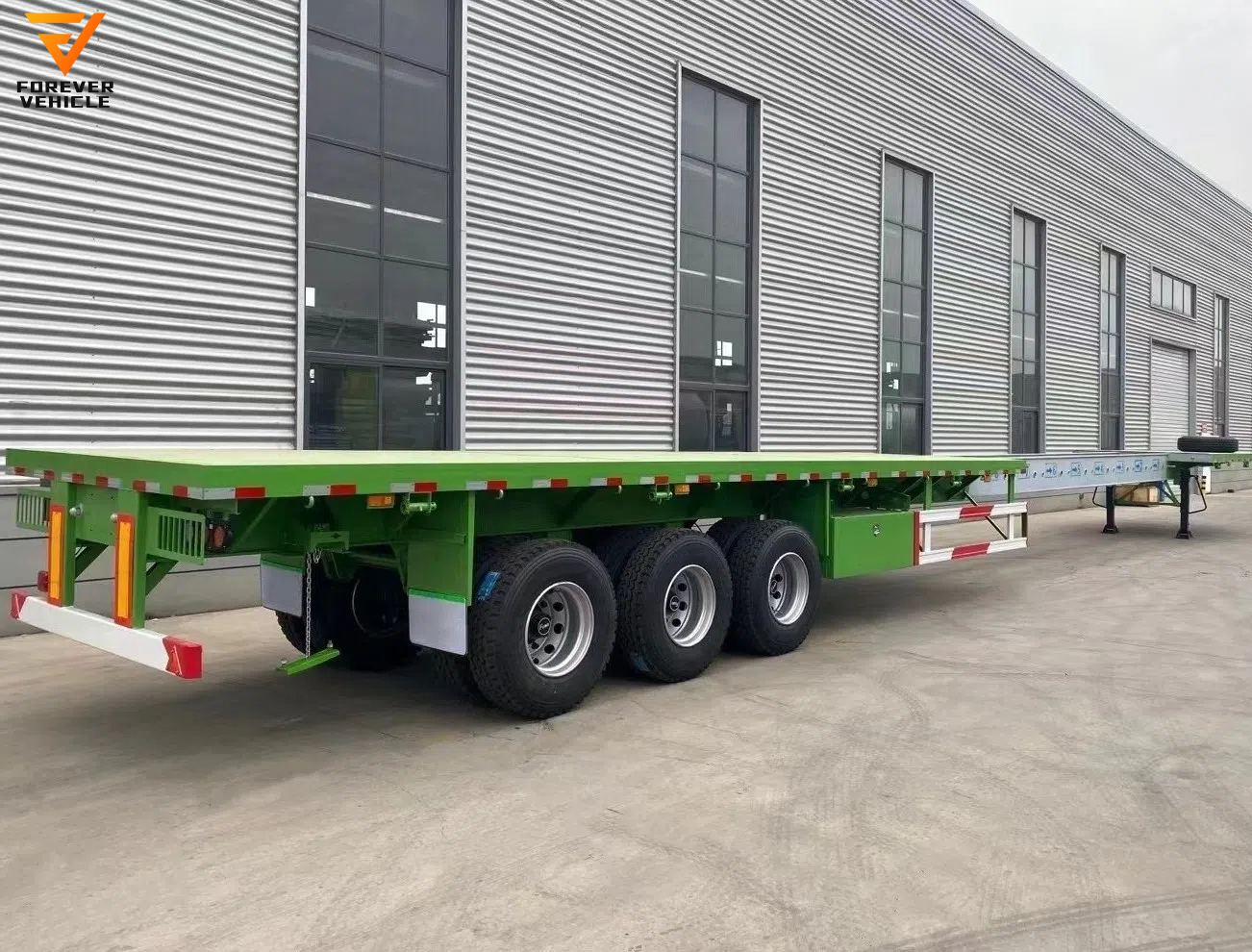

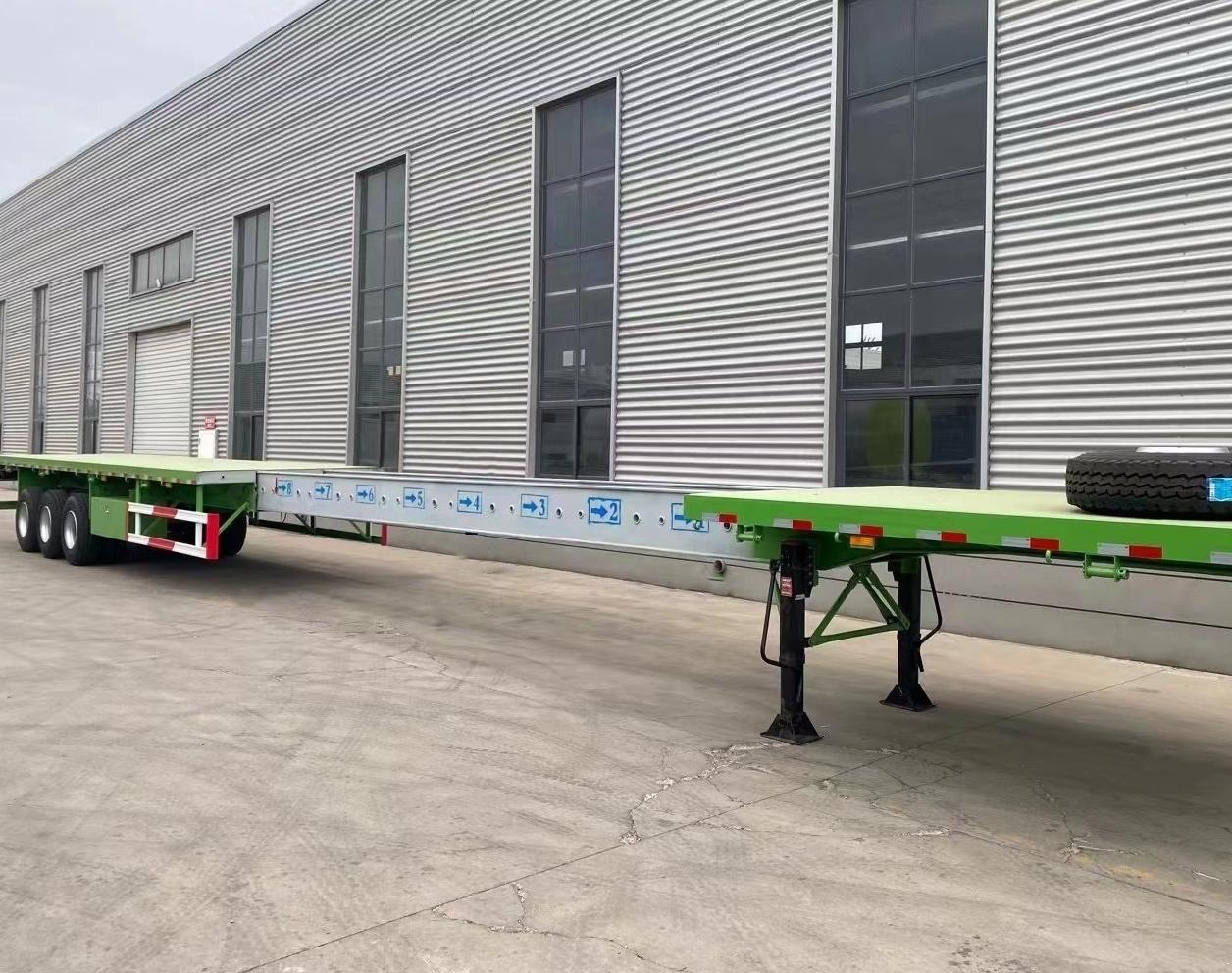

Extendable Semi Trailer Extensible Trailer Pull-out Flatbed Trailer 30tons
| Quantity: | |
|---|---|
| Trailer Model | Flatbed Trailer |
| Overall dimension | 12500 *2500 * 1550mm((According to customer demand)) |
| Tare Weight | 5T--11T |
| Loading Weight | 30-70T |
| Axle | 13T/16T/20T BPW or FUWA or EAST |
| Wheelbase(mm) | 6780+1310+1310 or other |
| Suspension system | Mechanical Spring or Air Suspension System |
| Steel Spring | 90(W)mm*13(Thick)mm*10 Layer |
| Frame | Height: 450mm-520mm, |
| upper plate thickness is 16mm-25mm, | |
| middle plate thickness is 8mm-12mm, | |
| down plate thickness is 16mm-25mm; | |
| Heavy duty and extra durability designed; | |
| Opting for high tensile steel Q345B welded by | |
| automatic Submerged-Arc processes Height I beam. | |
| Tire Type | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
| Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
| Twist Locks | 12 units (lifting type or Twist Screw Type) Optional locks for loading containers |
| Traction Pin | 2” or 3.5” |
| Spare Wheel Bracket | 2 sets(Patent type) |
| Tool Box | 2 sets(waterproof type) |

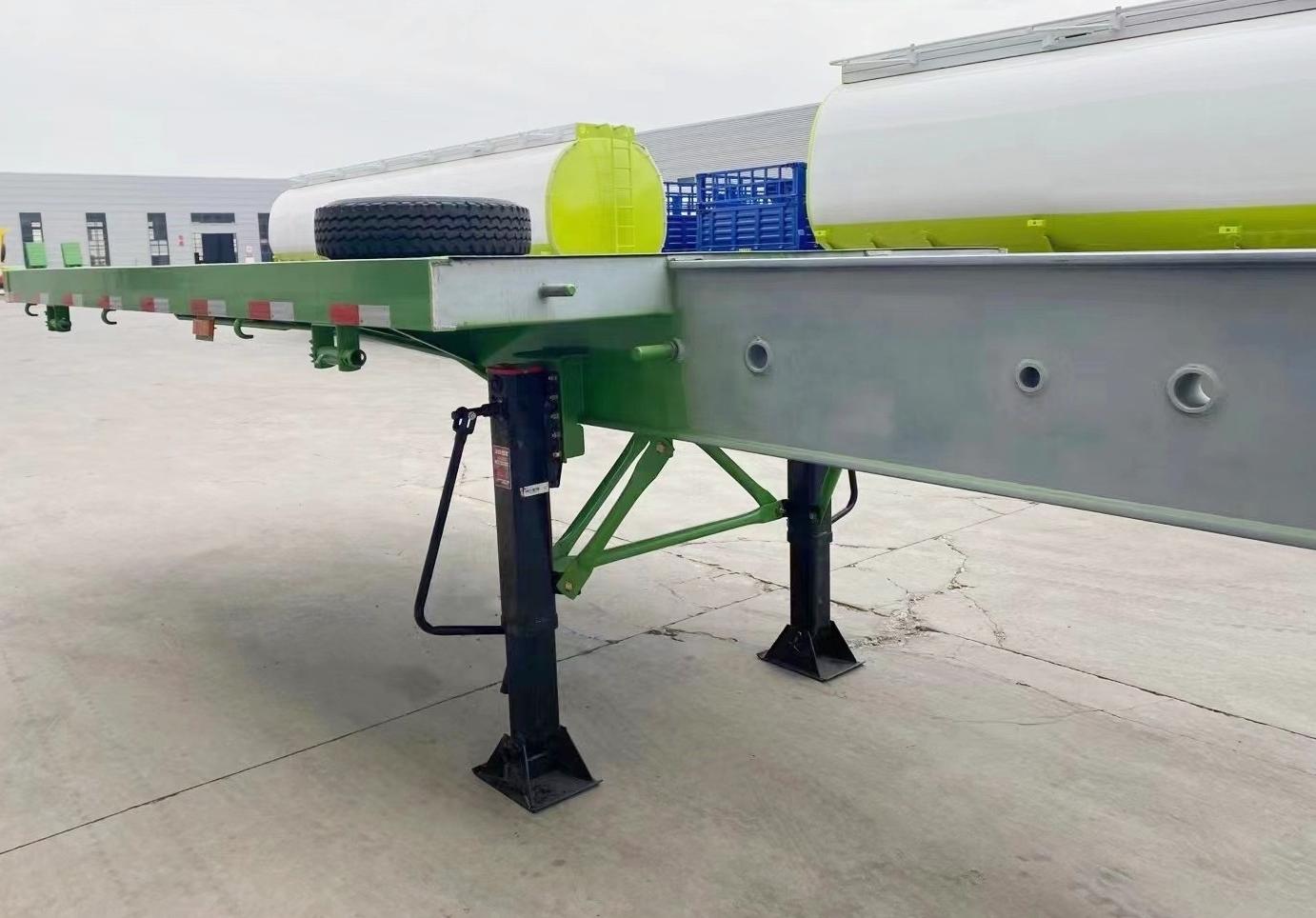

| Landing Leg | heavy duty 28ton landing leg |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
| One piece of 45L air tanks | |
| Brake air chamber | Six double chamber |
| 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | |
| Tail lamp with turn signal, brake light & reflector,side lamp etc. | |
| Electrical system | One set 6-core standard Cable. |
| Painting | Sandblasting, rust prevention, two primer, two finish |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
