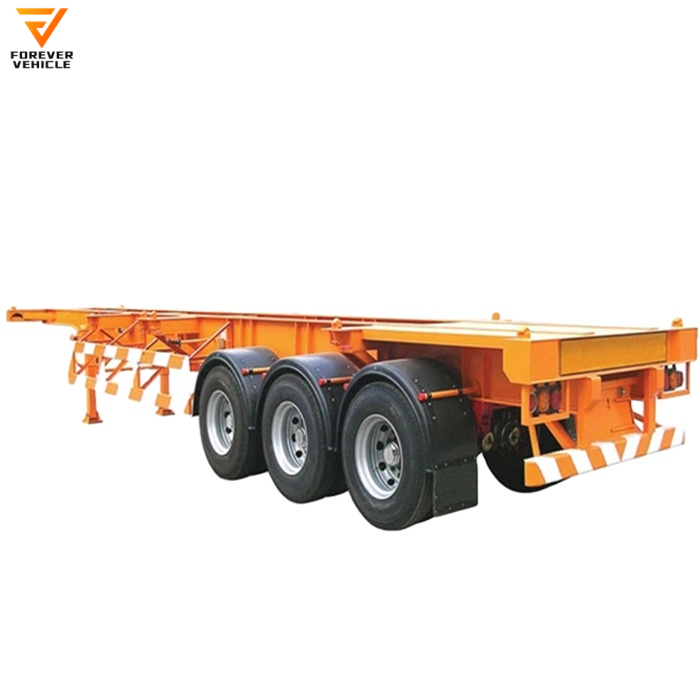

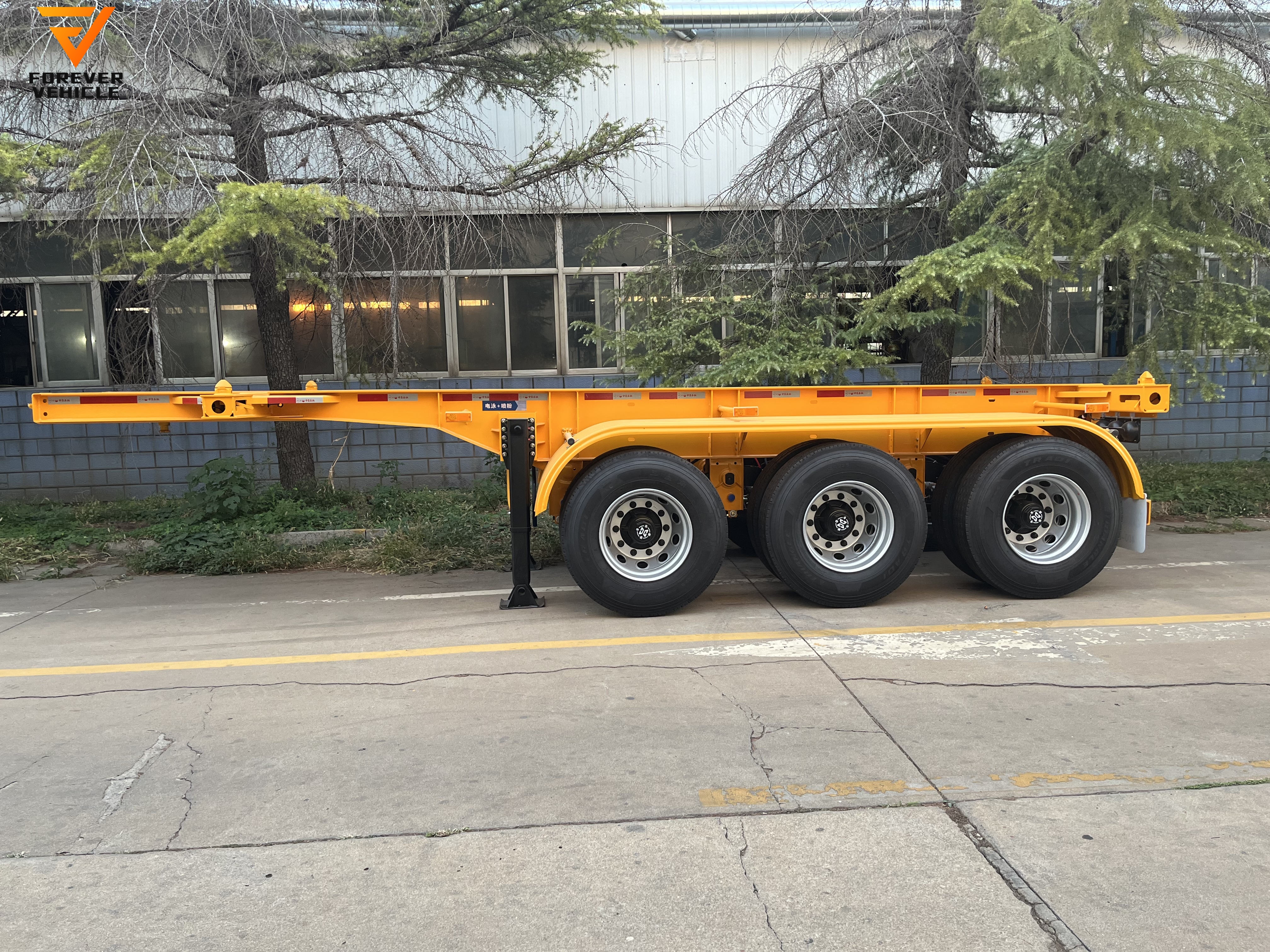

Tri-axle Container Semi Trailer Tri Axle 2040 Extendable Slider Container Chassis Sliding Skeletal Trailer
| Quantity: | |
|---|---|
| 20FT Skeleton Semi Trailer | 40FT Skeleton Semi Trailer | 45FT Skeleton Semi Trailer |
| 2 Axles/3 Axles | 3 Axles/ 4 Axles | 3 Axles/ 4 Axles |
| 20ft Container Loading | 1*40ft/2*20ft Container Loading | 1*45ft/1*40ft/2*20ft Container Loading |
| Loading Capacity: 20-50 Tons | Loading Capacity: 30-80 Tons | Loading Capacity: 30-80 Tons |
| Type: Gooseneck or Tandem | Type: Gooseneck or Tandem | Type: Gooseneck or Tandem |
| Main Bean | ||
| Material: Q345/T700 | Material: Q345/T700 | Material: T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 14mm | Upper Plate Thickness: 10mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm | Middle Plate Thickness: 5mm |
| Lower Plate Thickness: 12mm | Lower Plate Thickness: 16mm | Lower Plate Thickness: 10mm |
| Height: 500mm | Height: 500mm | Height: 420mm |
| Dimension | ||
| L*W*H: 7000mm*2480mm*1560mm | L*W*H: 12400mm*2480mm*1580mm | L*W*H: 13950mm*2500mm*1600mm |
| Axle | ||
| 2/3 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13/16 Ton VEHCILE MASTER/FUWA/BPW |
| Tire | ||
| 12R22.5 (8/12 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone |
| Rim | ||
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum |
| Leaf Spring | ||
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
| King Pin | ||
| #50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand |
| Landing Gear | ||
| 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand |
| Twist Lock | ||
| 4 Sets | 12 Sets | 12 Sets |
| Painting | ||
| Electrophoresis Painting | Electrophoresis Painting | Electrophoresis Painting |
