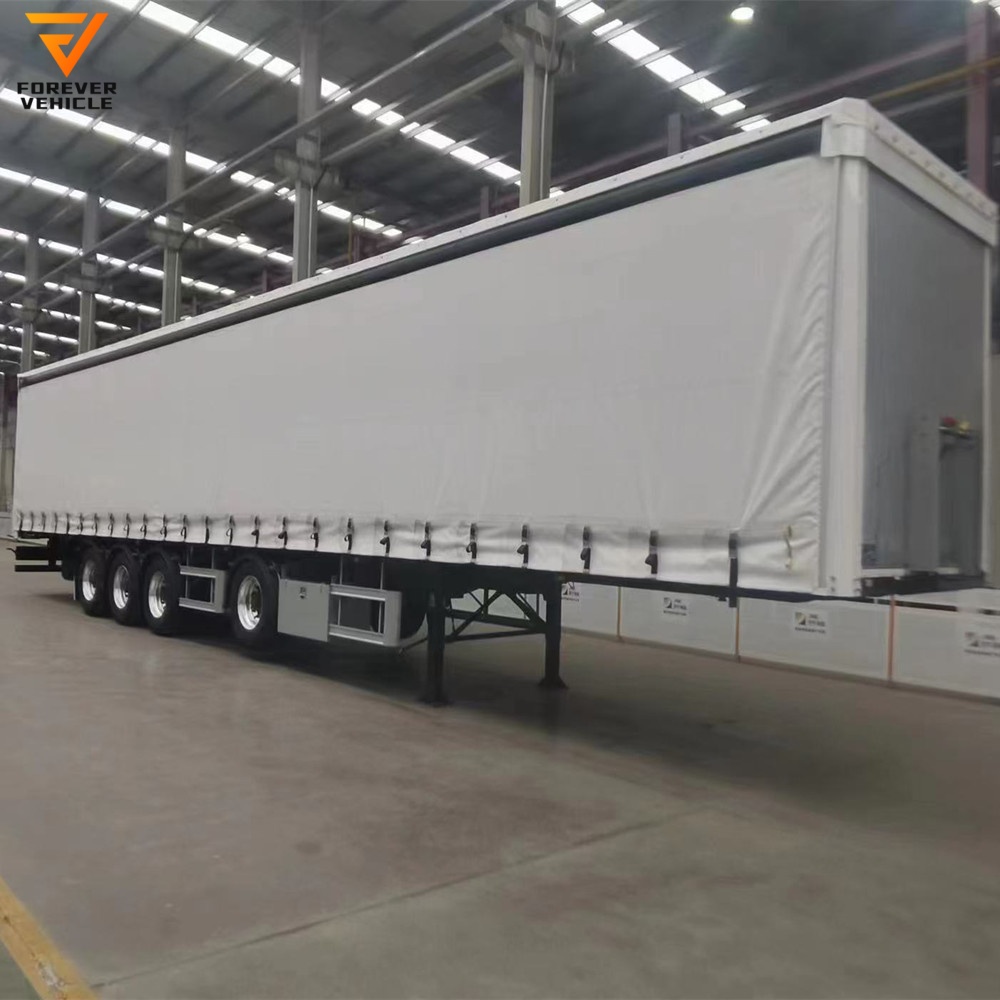

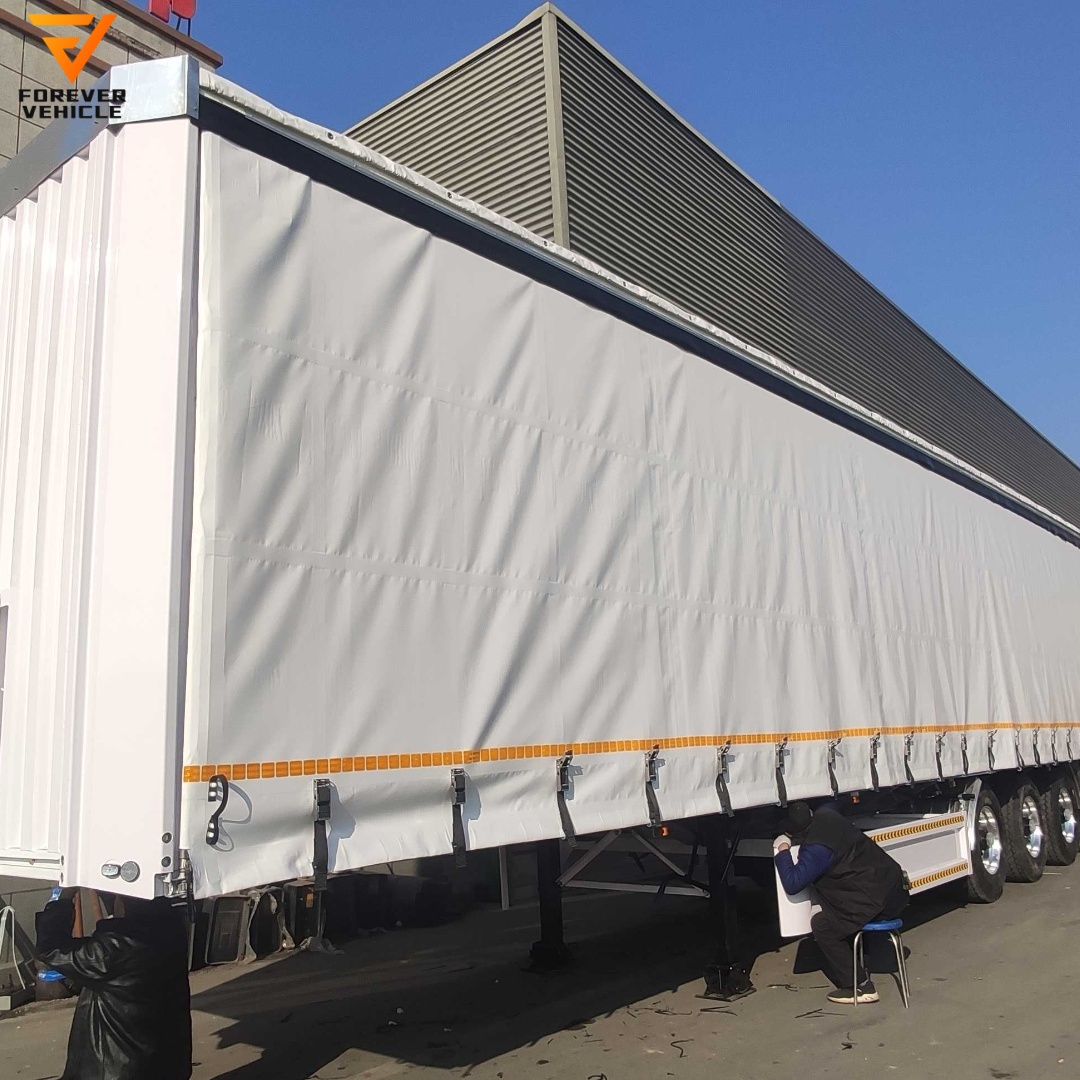

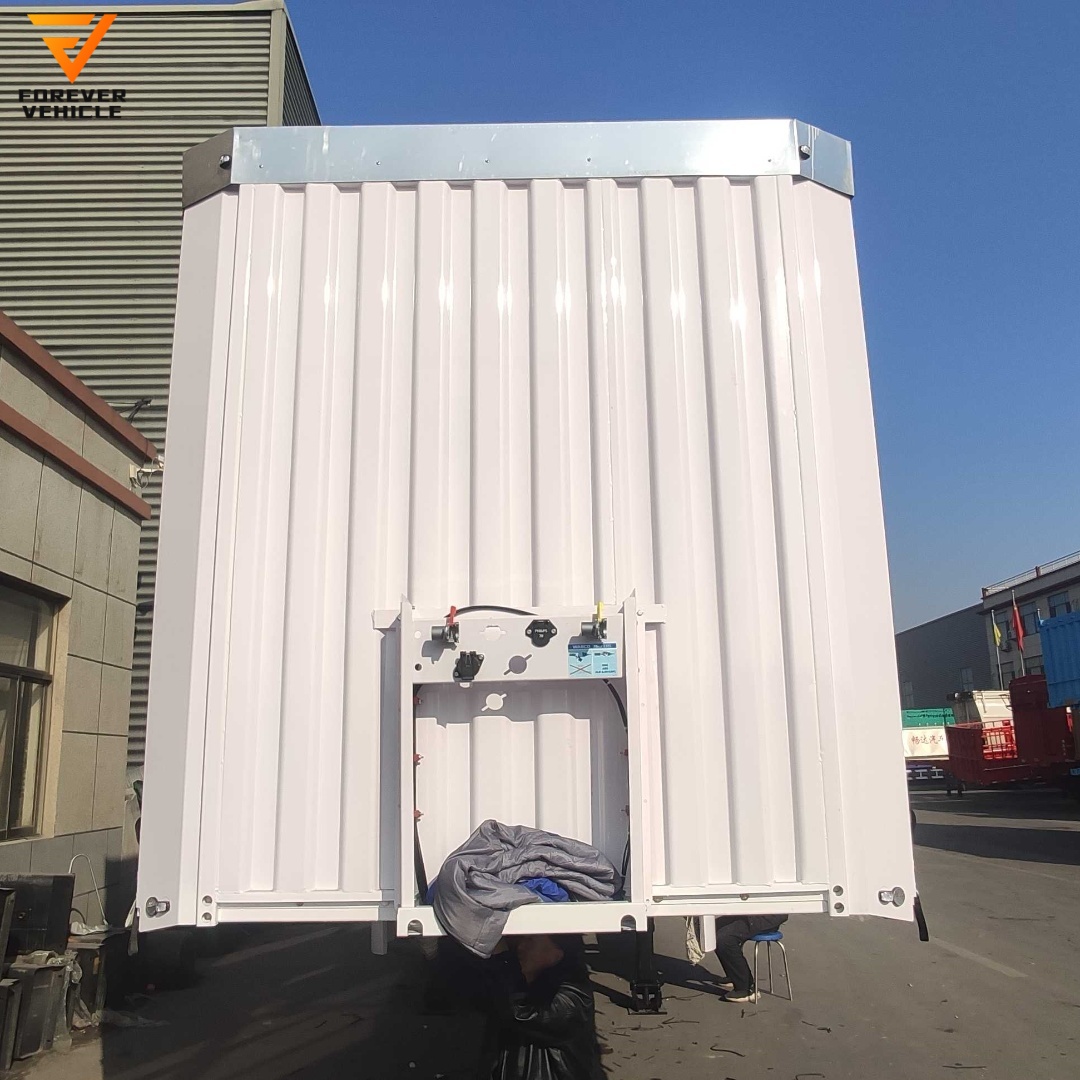

3 Axle 40ft 53ft Curtain Side Curtainsider Van Box Cargo Truck Trailer with Air Suspension
| Quantity: | |
|---|---|
| Commodity | CurtainSemi Trailer |
| Inside dimension | 13640×2480×2700mm |
| Overall dimension | 13885*2500*4000mm |
| Payload | 40000 kg |
| Tare weight | 6700kg |
| Front and rear gate | Aluminium |
| Side plate | Aluminium rail |
| Frontand rearpillar | Carbon steel |
| Central pillar | Sliding pillar/6 sets |
| Roof-hosting system | 4sets,the roof can slide to open |
| Theroof curtain | 750GRM,low temperature resistant(-40℃) |
| The side curtain | 900GRM,low temperature resistant(-40℃) |
| Floor hooks | 28 pcs |
| Axle | 10T disc braking system,wheel track 2050,two axle with ABS |
| Tire | 385/65R22.5/20PR7 pcs |
| Rim | 11.75-22.5/7pcs |
| Side beam | 16mmchannel steel(carbon steel) |
| Through beam | Factory standard |
| Thickness of Floor | 30mm Waterproof phenolic resin floor(two-sided) |
| Thickness of Upper and lower wing plate | Upper wing plate 10mm,Lower wing plate 10mm |
| Web plate thickness andheight | Thickness 5mm,height480mm |
| Landinggear | FUWA28T two-speed |
| Suspension | The first axle can be lifted,and imported air suspension |
| Kin ping | 50mmJOST Bolt-in |
| Tool box | 1 piece 600mm Aluminium |
| Sparetire frames | Side-installed 2 pcs |
| EBS | WABCO EBS |
