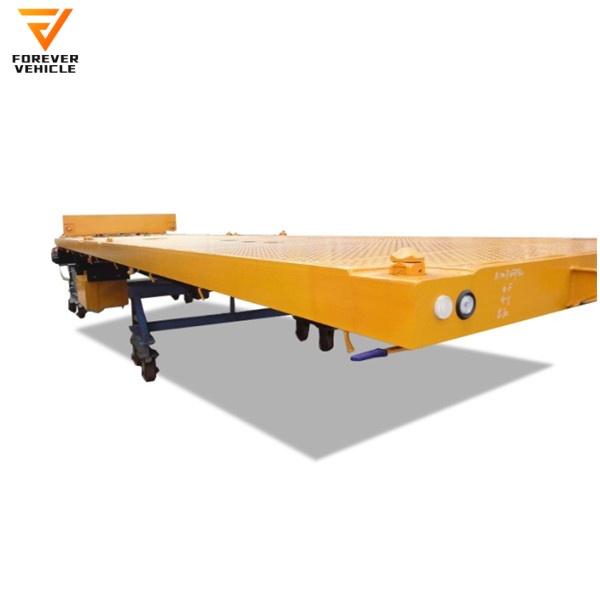

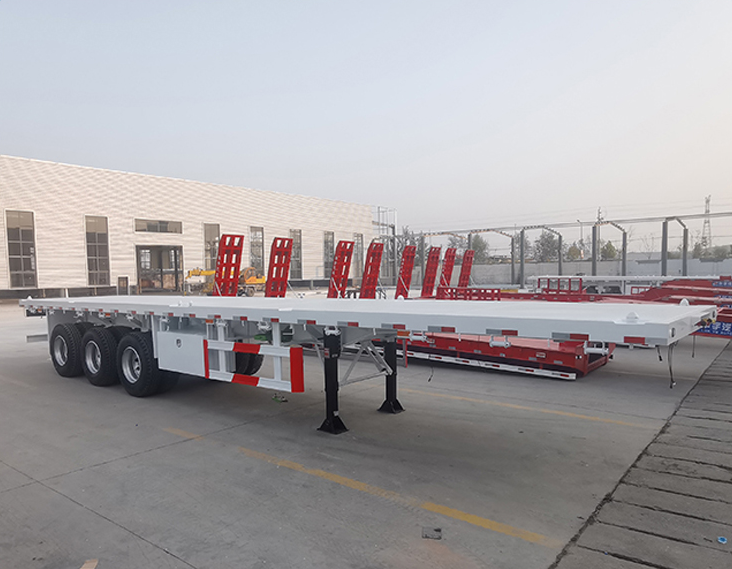

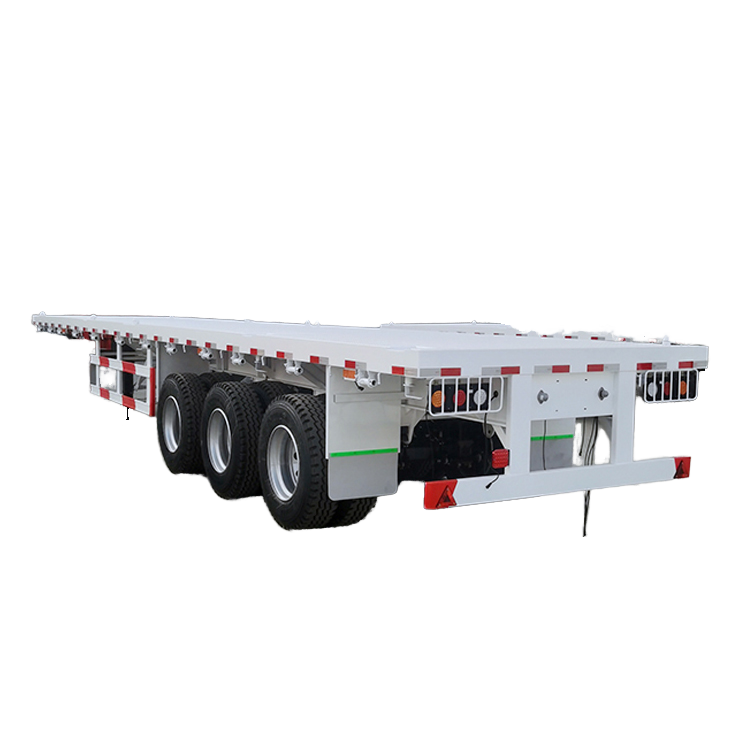

3 AXLE 40ft Semi Trailer Shipping Container Flatbed Semi Trailer
| Quantity: | |
|---|---|
New 3 Axles Flat Bed Semitrailer | |
Axle | 3 Axle Extra widened 13ton FUWA Brand |
Outrigger | Linkage of 28Ton, |
Gross weight (kg) | 38450 |
Tare weight (kg) | 6450 |
Payload (kg) | 32000 |
External dimension (L*W*H) mm | 12980x2500x3858
|
Cargo van internal dimension(L*W*H)mm | 12650x2300x600 |
Wheel base(mm) | 7250+1310+1310 |
Track space(mm) | 1830/1830/1830 |
Tires | 11.00R20—16PR Ratial tyre |
No of tire | 12 |
Leaf spring | 8/8/8 |
The rear axle location(mm) | 2040 |
Leave angle(°) | 14 |
Trail pin | 90# Jost brand Bolt-in king pin |
Floor (mm) | 3mm thickness floor |
Brake system | Double air chambers, Biaxial energy storage, ABS braking system |
longitudinal beam | 14/6/16 |
Painting | zinc-rich primer and modified urethane topcoat as customers' choices. |
Chassis | Heavy duty and extra durability designed I beam, welded by automatic Submerged-Arc processes, 500mm height, Light Channed steel(16# ) by automatic submerged are welding; Top Flange 14mm, Botton Flange 16mm, Middle Flange 6mm. |
ACCESSORIES | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH)，WITH ONE SPARE TYRE AND WHEEL; |
New 3 Axles Flat Bed Semitrailer | |
Axle | 3 Axle Extra widened 13ton FUWA Brand |
Outrigger | Linkage of 28Ton, |
Gross weight (kg) | 38450 |
Tare weight (kg) | 6450 |
Payload (kg) | 32000 |
External dimension (L*W*H) mm | 12980x2500x3858
|
Cargo van internal dimension(L*W*H)mm | 12650x2300x600 |
Wheel base(mm) | 7250+1310+1310 |
Track space(mm) | 1830/1830/1830 |
Tires | 11.00R20—16PR Ratial tyre |
No of tire | 12 |
Leaf spring | 8/8/8 |
The rear axle location(mm) | 2040 |
Leave angle(°) | 14 |
Trail pin | 90# Jost brand Bolt-in king pin |
Floor (mm) | 3mm thickness floor |
Brake system | Double air chambers, Biaxial energy storage, ABS braking system |
longitudinal beam | 14/6/16 |
Painting | zinc-rich primer and modified urethane topcoat as customers' choices. |
Chassis | Heavy duty and extra durability designed I beam, welded by automatic Submerged-Arc processes, 500mm height, Light Channed steel(16# ) by automatic submerged are welding; Top Flange 14mm, Botton Flange 16mm, Middle Flange 6mm. |
ACCESSORIES | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH)，WITH ONE SPARE TYRE AND WHEEL; |
