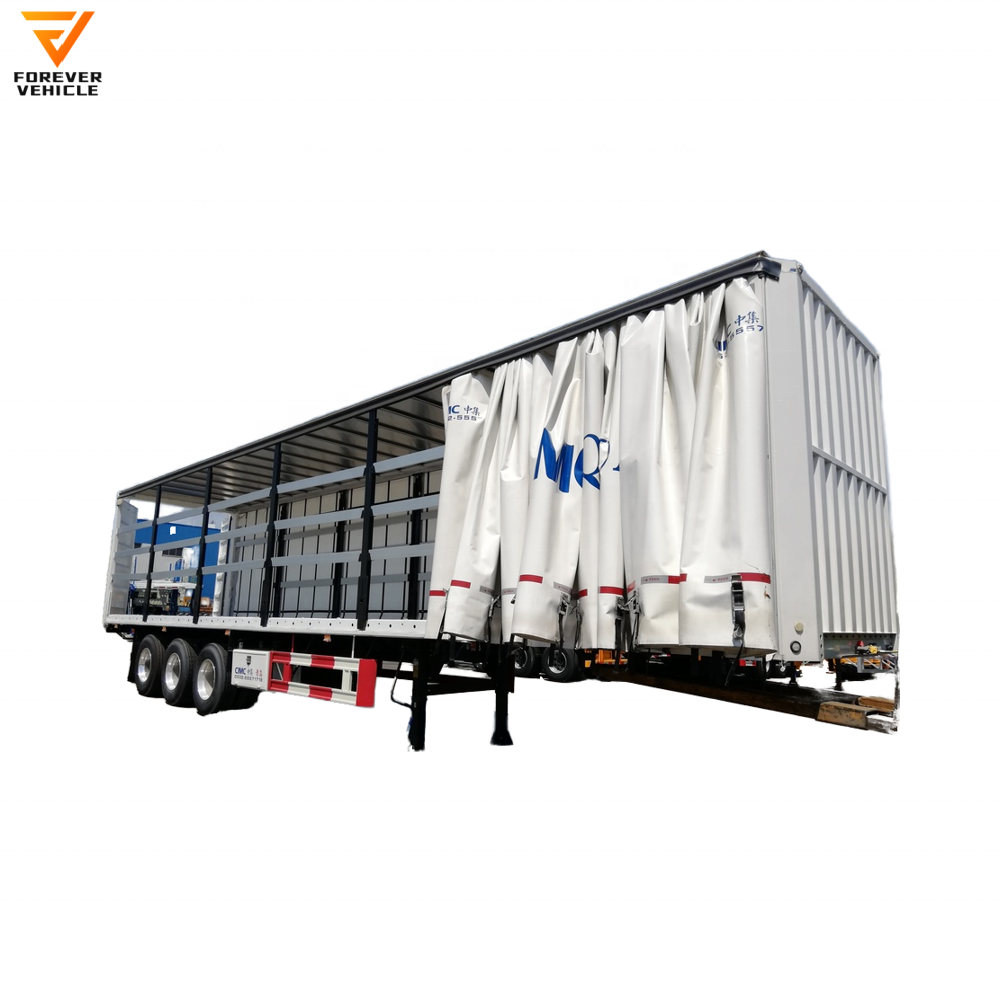

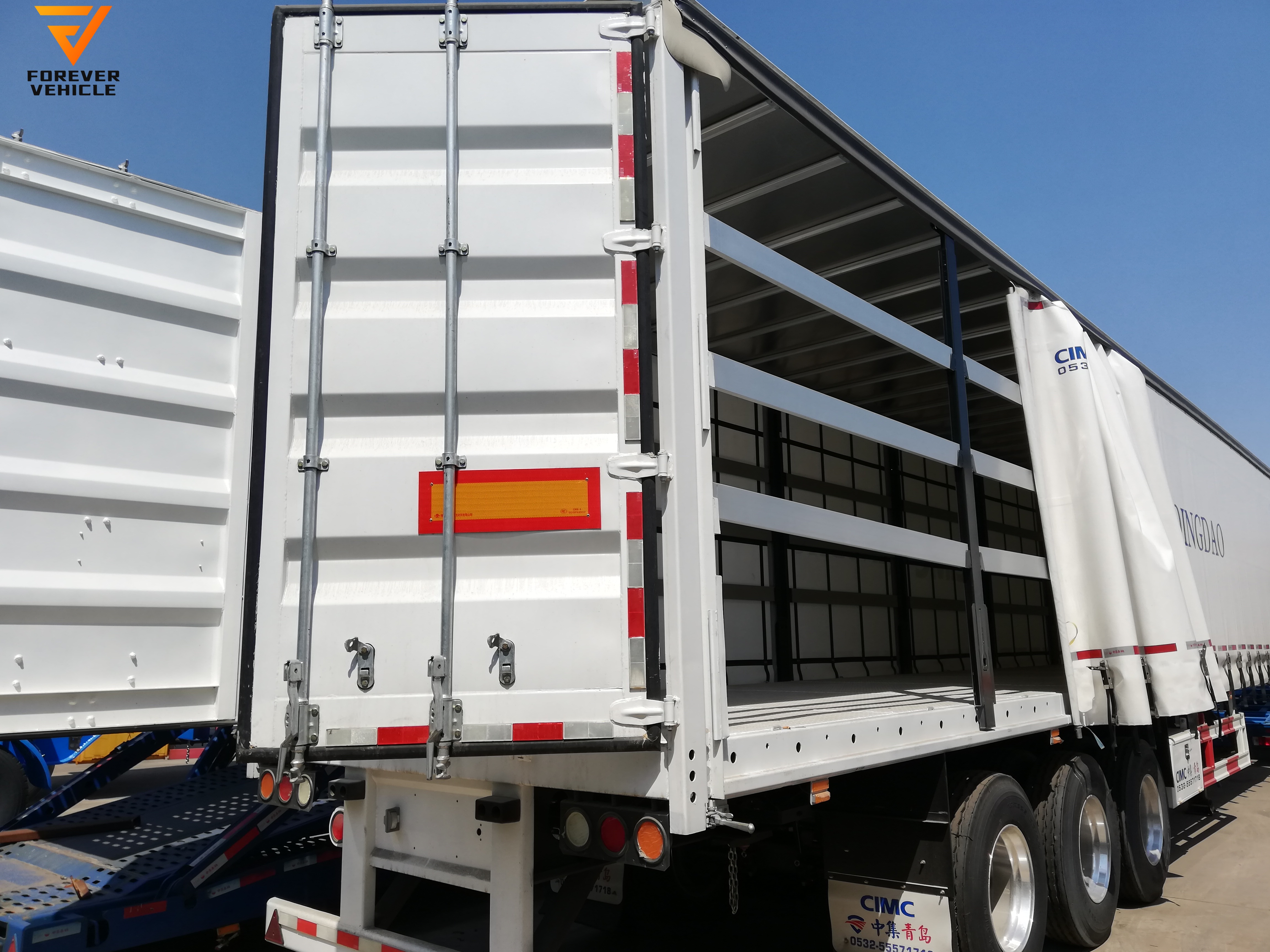

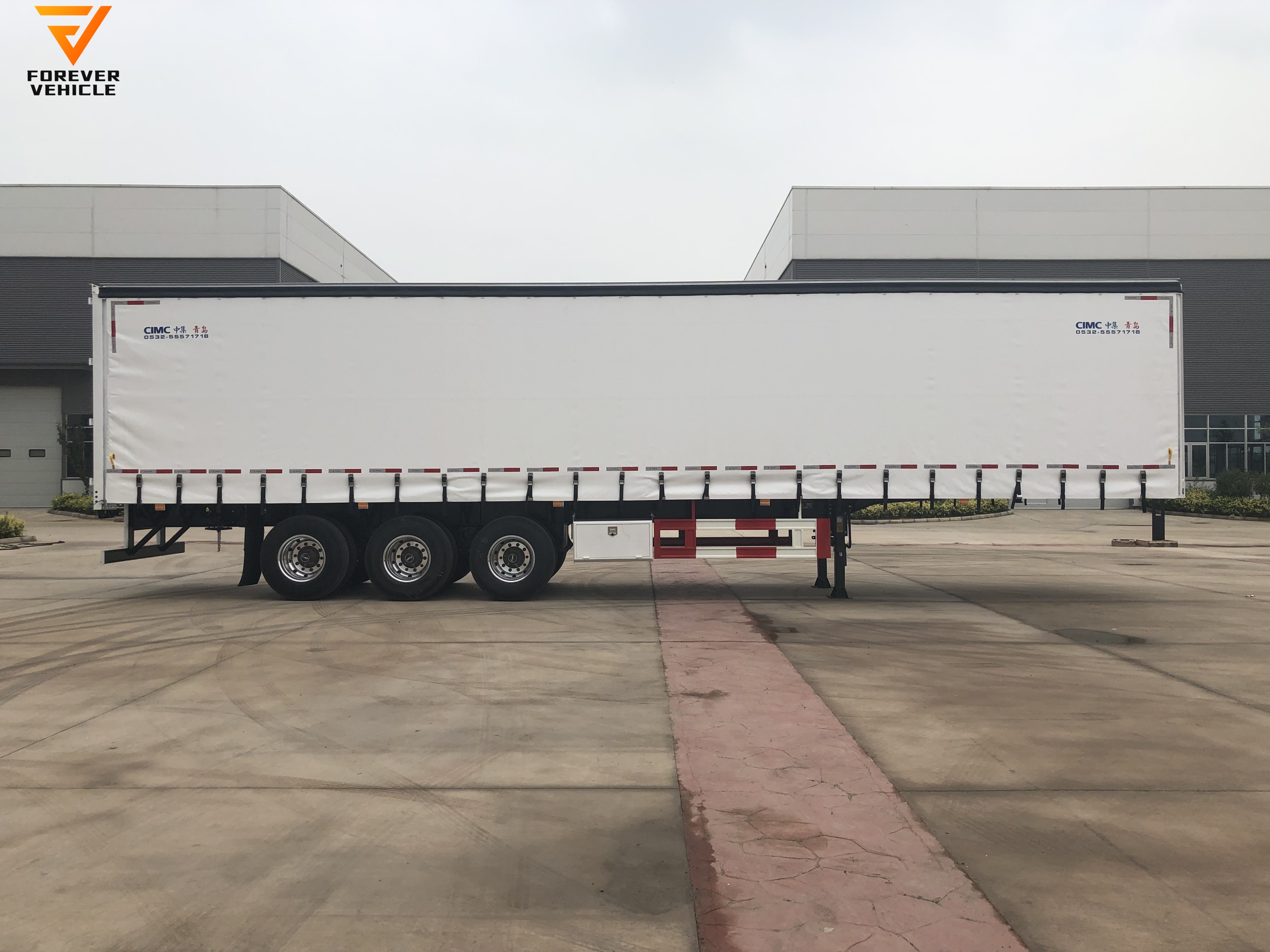

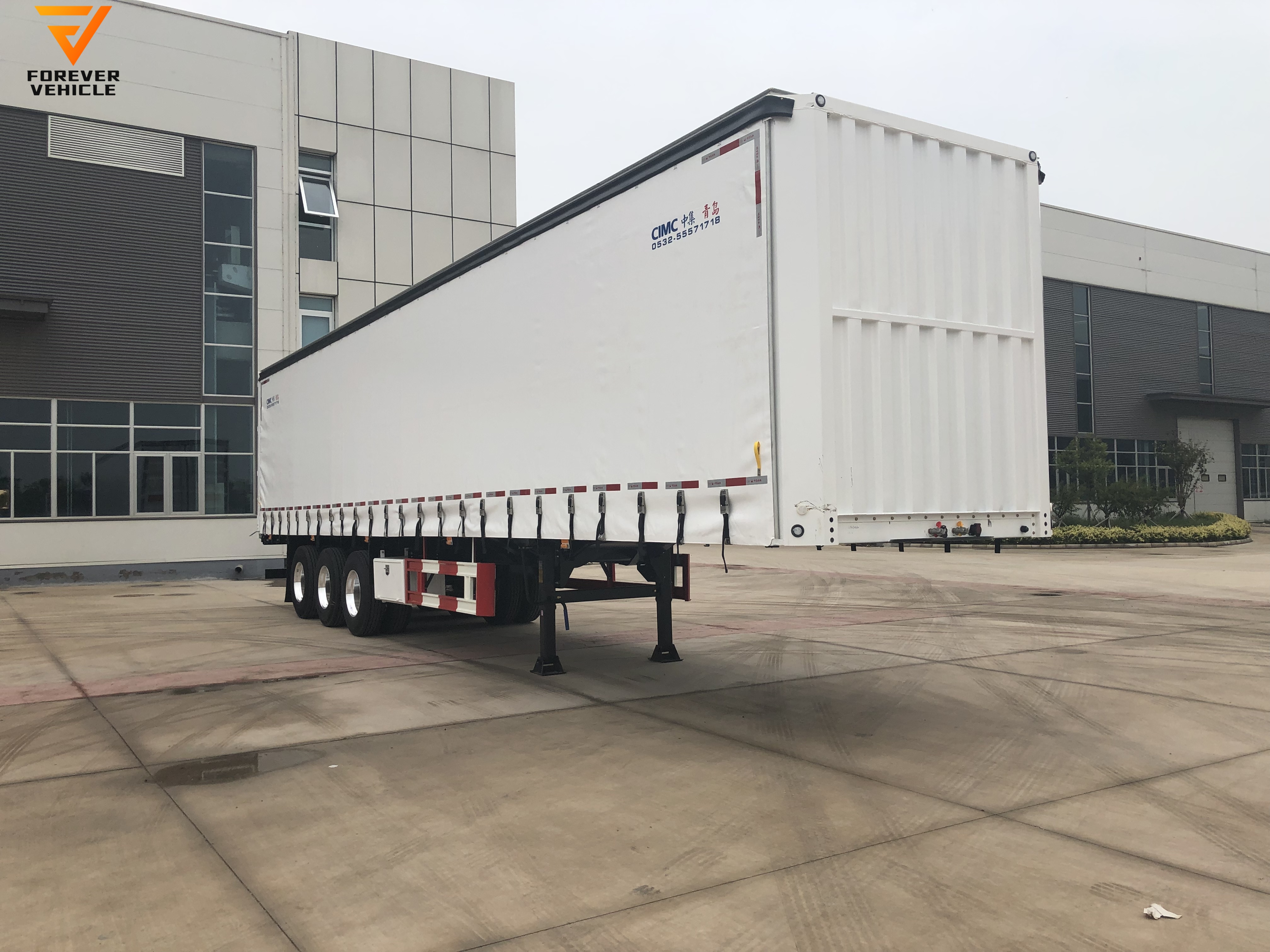

40FT Curtain Side Trailer with Euro Standard Heavy Loading Capacity And Good Quality Truck Trailers
| Quantity: | |
|---|---|
Type | 40ft Curtain side trailer with three axles | ||
Parameter | Dimensions | Overall Dimensions (mm) | L×W×H:12,500×2,550×(the height will be confirmed by the specification of tractor 1,400mm front wall) |
Max. Payload (kg) | 40,000 | ||
Fabric & Configuration | Main beam | Flange 14mm/16m, | |
Floor | Checker plate, 3mm | ||
Painting | Primer and topcoat | ||
Tire | Type: 12R22.5, equip 13pcs per chassis | ||
Rim | Type: 9.0*22.5, equip13pcs per chassis | ||
Axle | RHINOX13T*3sets | ||
King pin | JOST 50# | ||
Suspension | Mechanical suspension for heavy load | ||
Leaf spring | 8pcs, 90*16mm, | ||
Landing gear | 30 T | ||
Brake system | Air brake, 2 sets of 30/30 type, Chinese brake valve. | ||
ABS | No | ||
Electric system | 24V, LED lights. | ||
Tool box | One | ||
Spare tire carrier | Two | ||
Color | White | ||
