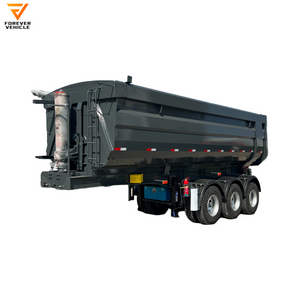

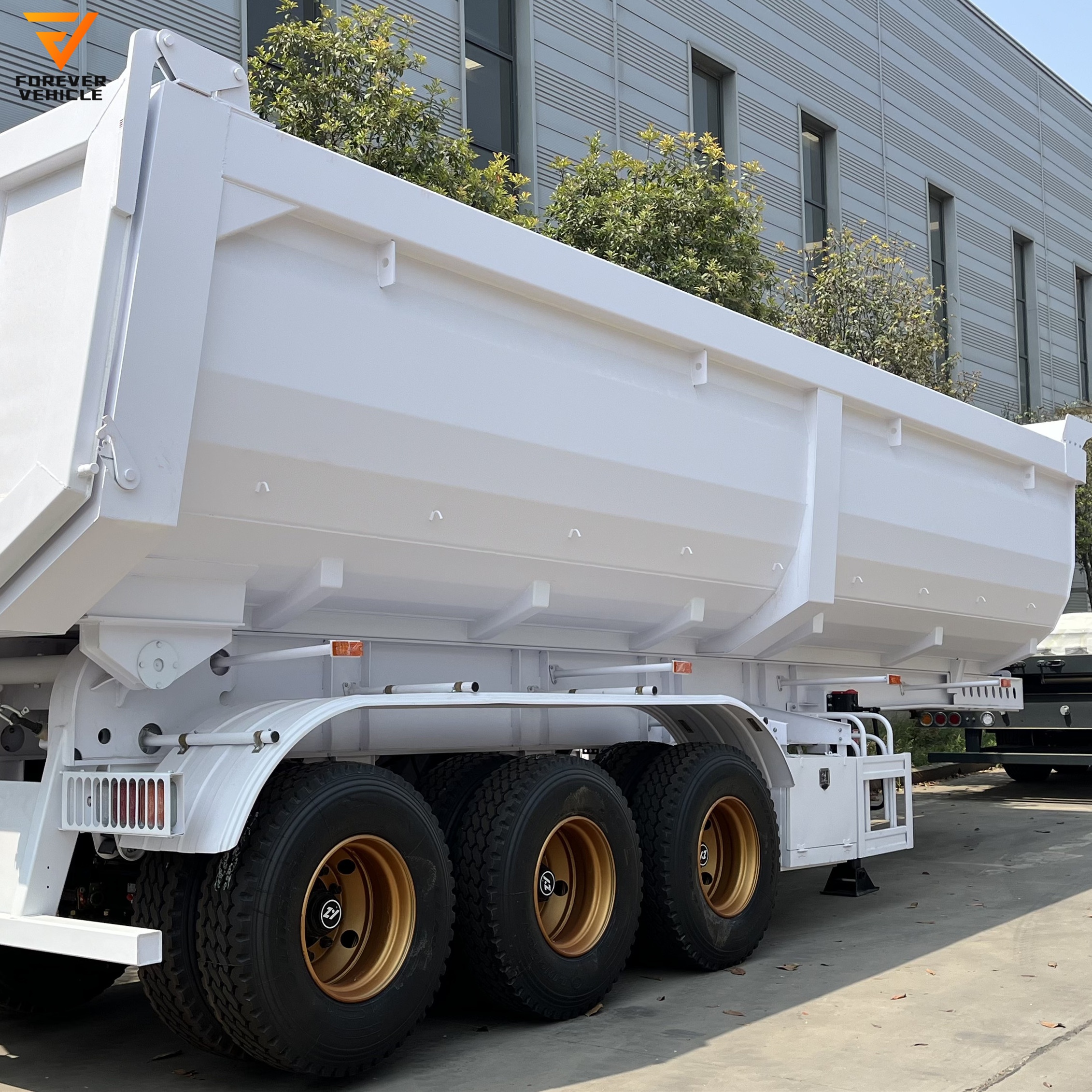

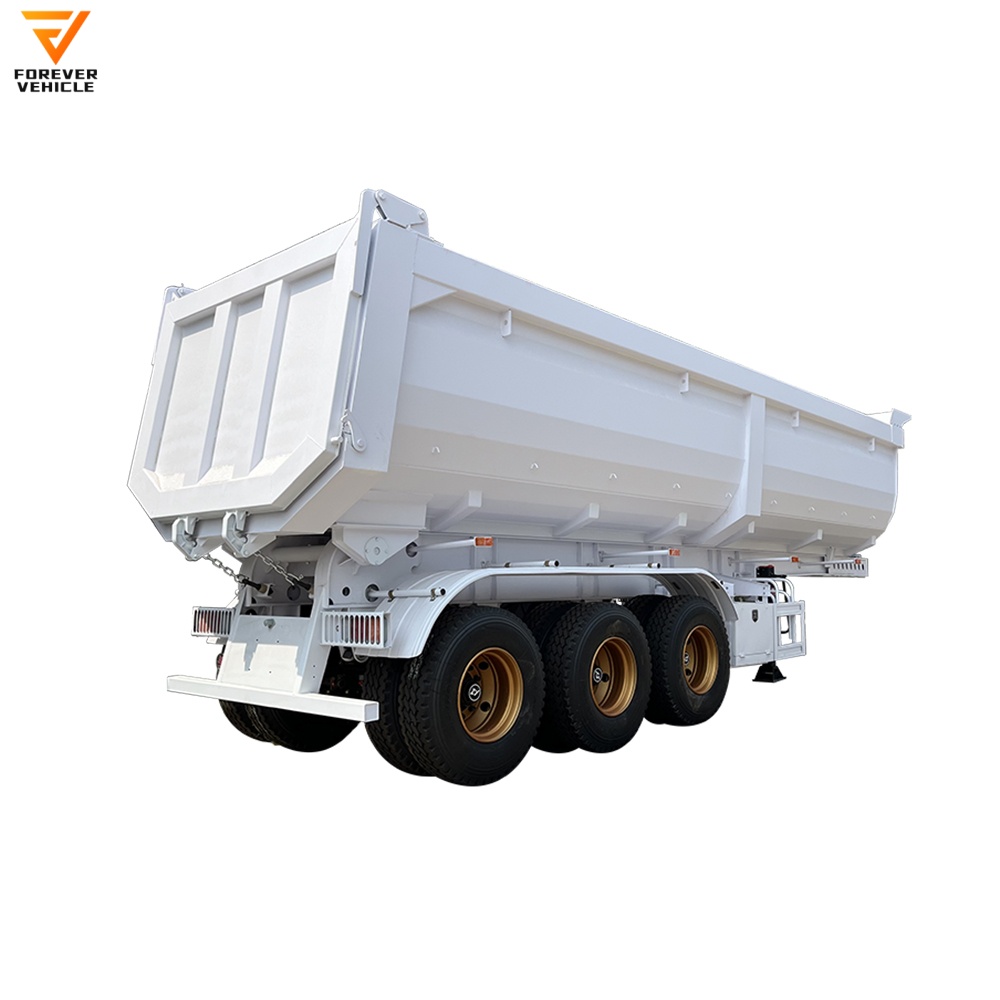

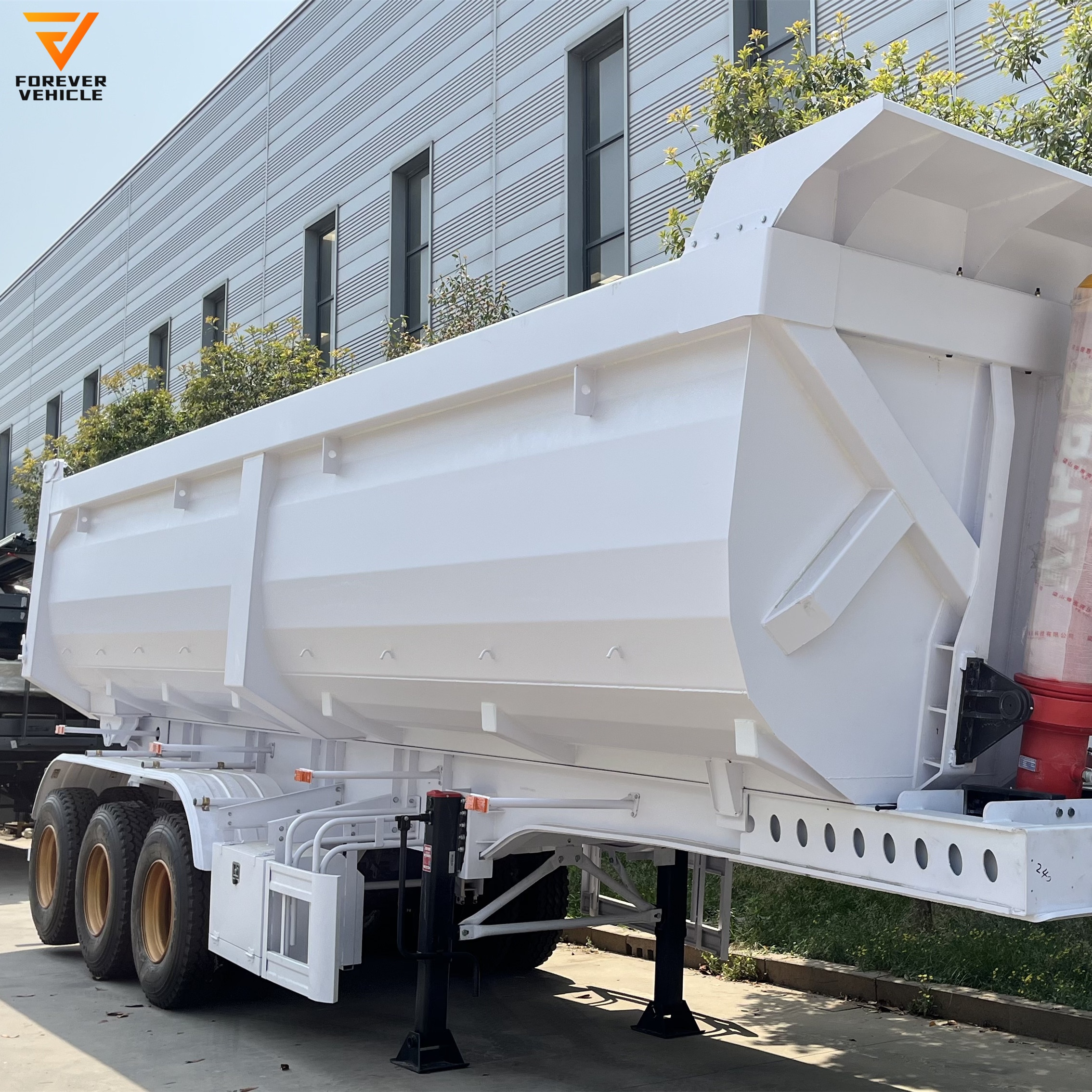

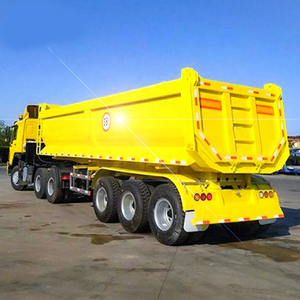

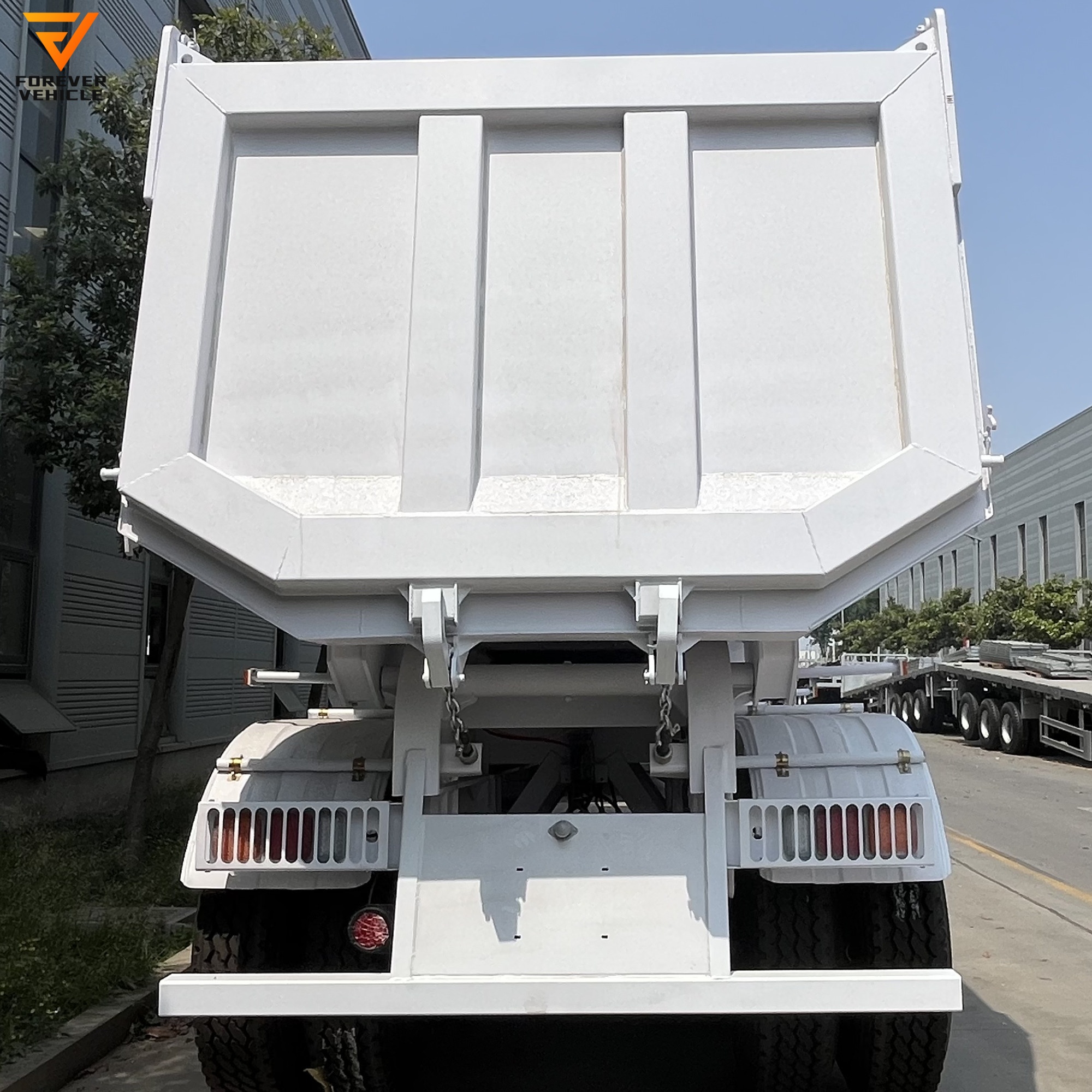

3 Axles U Type 40 50 Tons Front Lifting Rear Tipper Dump Truck Semi Trailer
| Quantity: | |
|---|---|
| Name: | Front Tipper Trailer | Tare weight: | About 11.6 ton |
| Size: | 9600*2550*3800mm | Axle: | Changda/FUWA/BPW 3 axles |
| Main beam: | upper 14mm; bottom 14mm; middle 6+6mm; 480mm height | Side beam: | 220mm height |
| Cross beam: | Bending steel 4mm | Leaf spring: | Standard 10pcs |
| Brake chamber: | 3pcs, aluminum alloy material | Rim: | 9.0*22.5 * 12 pcs |
| King pin: | 90# or 50# | Tyre: | 12R22.5 * 12 pcs |
| Suspension: | Mechanical suspension, 70 pin | Air tanker: | 3 double |
| Floor: | 5mm flat plate | Brake system： | WABCO |
| Landing gear: | 28T | Gas circuit: | &12 red yellow nylon tube |
| Draw plate: | 10mm thickness | Tool box: | 1 pc |
| Tyre carrier: | 1 pc | Wire tightener: | 24pcs |
| Leg crank: | 1 pc | Shaft head wrench: | 1 pc |
| Payload: | 50T | Paint: | one anti-rust paint, two component polyurethane paint |
