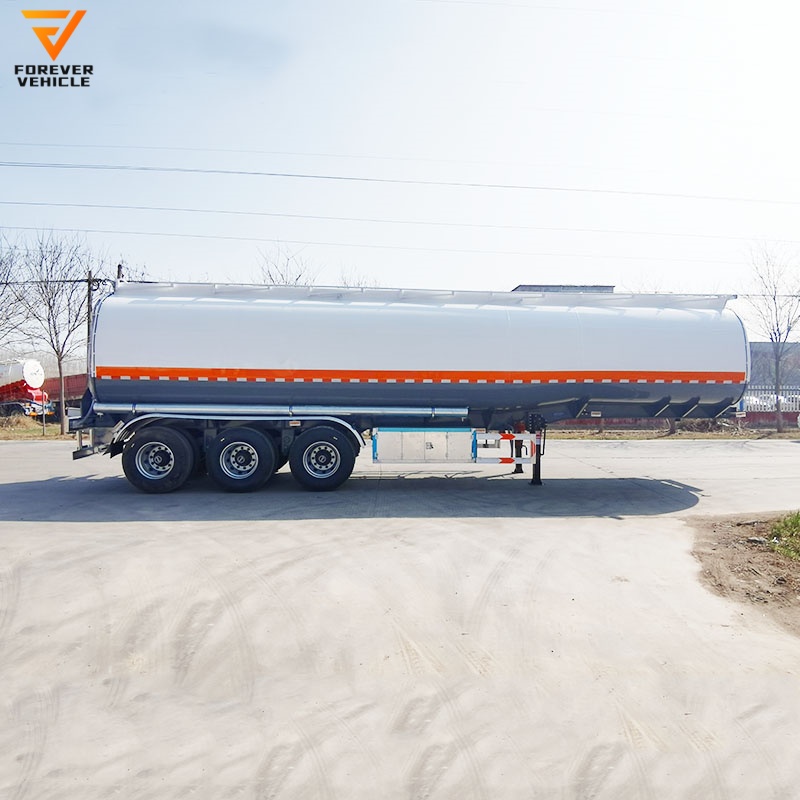

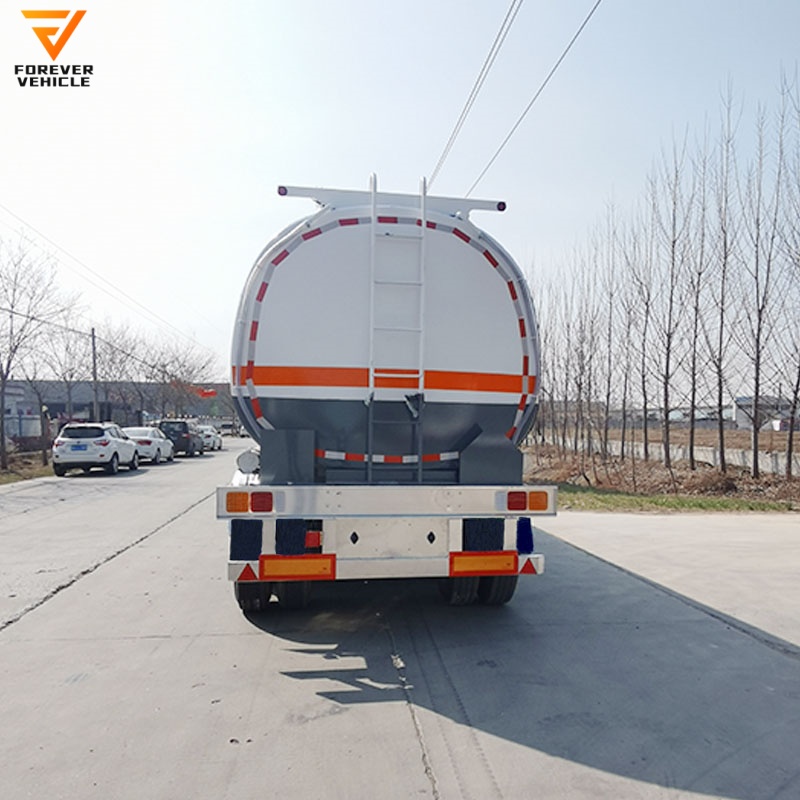

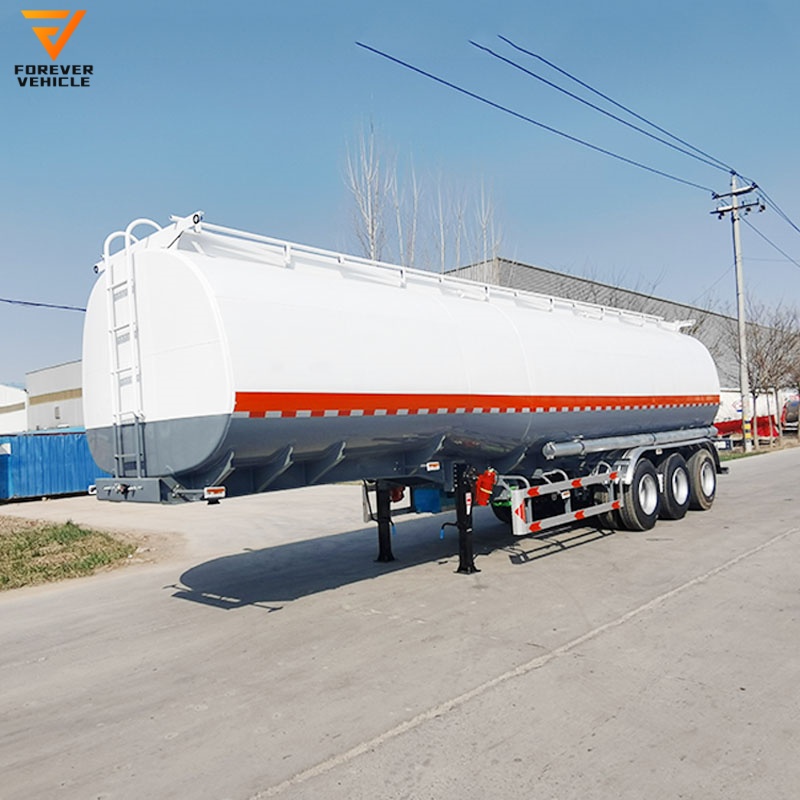

3 Axle Stainless Steel Water Tank Trailer Semi-trailer
| Quantity: | |
|---|---|
| Specification | |
| Size | 12500x2500x3600(mm) |
| Capacity | 40CBM |
| Axle number | 3 |
| Axle Brand | Fuwa or BPW |
| Suspension | Common mechanical or Air suspension |
| King Pin | 2'' or 3.5'' traction pin |
| Dimensions | 11980*2500*3800mm |
| Wheel Rim | 9.0-22.5 steel wheel rim |
| Steel Spring | 10 pieces per axle |
| Tank body & end plate | Q235/5mm steel & 6mm steel sheet |
| Manhole cover | 500mm manhole cover. 2 sets with 2 breather valve |
| Discharge valve & Pipe | 4'' disc valve & 4'' seamless steel tube |
| Bottom valve | 1-2 sets of aluminum API pneumatic bottom valve |
| Landing Gear | 28T Manual operating,Heavy duty landing gear |
| Accessories | 1 Set standard tool box |
| Light | Tail lamp with turn singnal,brake light & reflector,side lamp etc. |
| Painting | 1 coat of anticorrosive prime,twice coats of final paint |
| Tire | |
| Tire spe. | 12R22.5 |
| Number of Tire | 12 pieces |
| Spare Tire Carries | 2pieces |
| Frame | |
| Main beam | Q345 Steel The height of the beam is 500mm Down plate is 16mm;middle plate is 8mm |
| Air/Elec. | ISO standard air connector |
| Connector | 24V 7 pin plug socket |
| Color | Upon request |
| Specification | |
| Size | 12500x2500x3600(mm) |
| Capacity | 40CBM |
| Axle number | 3 |
| Axle Brand | Fuwa or BPW |
| Suspension | Common mechanical or Air suspension |
| King Pin | 2'' or 3.5'' traction pin |
| Dimensions | 11980*2500*3800mm |
| Wheel Rim | 9.0-22.5 steel wheel rim |
| Steel Spring | 10 pieces per axle |
| Tank body & end plate | Q235/5mm steel & 6mm steel sheet |
| Manhole cover | 500mm manhole cover. 2 sets with 2 breather valve |
| Discharge valve & Pipe | 4'' disc valve & 4'' seamless steel tube |
| Bottom valve | 1-2 sets of aluminum API pneumatic bottom valve |
| Landing Gear | 28T Manual operating,Heavy duty landing gear |
| Accessories | 1 Set standard tool box |
| Light | Tail lamp with turn singnal,brake light & reflector,side lamp etc. |
| Painting | 1 coat of anticorrosive prime,twice coats of final paint |
| Tire | |
| Tire spe. | 12R22.5 |
| Number of Tire | 12 pieces |
| Spare Tire Carries | 2pieces |
| Frame | |
| Main beam | Q345 Steel The height of the beam is 500mm Down plate is 16mm;middle plate is 8mm |
| Air/Elec. | ISO standard air connector |
| Connector | 24V 7 pin plug socket |
| Color | Upon request |
