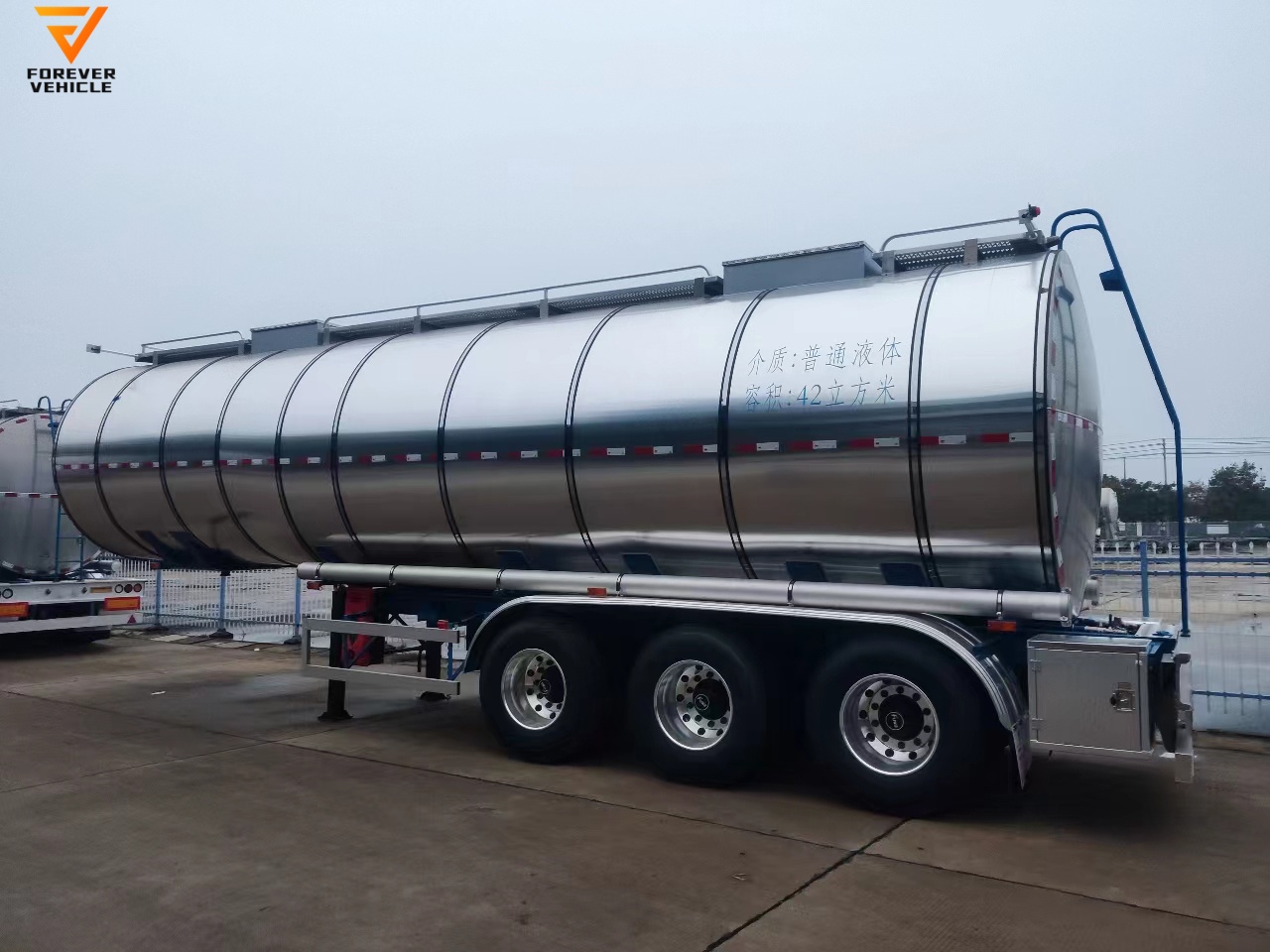

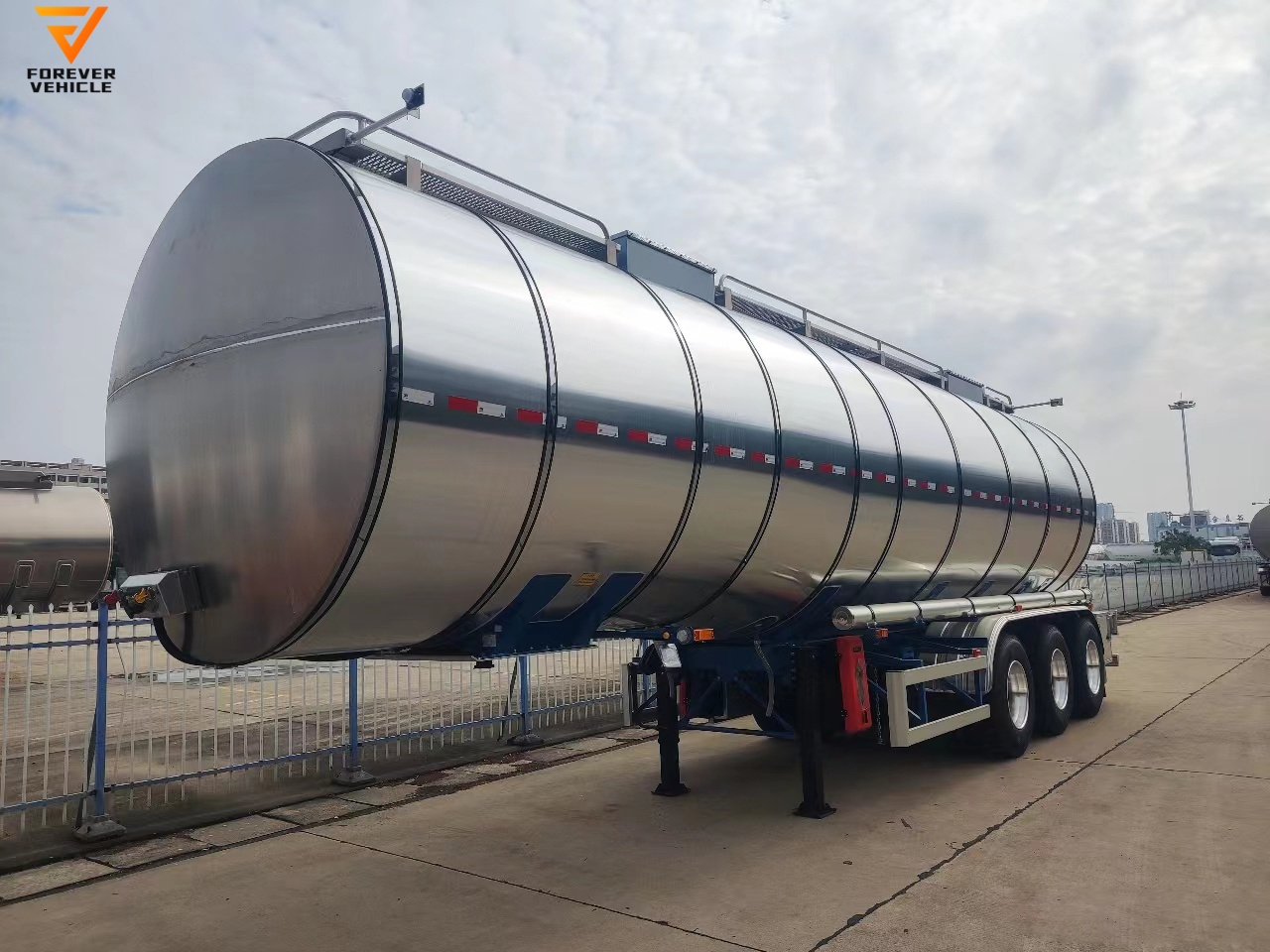

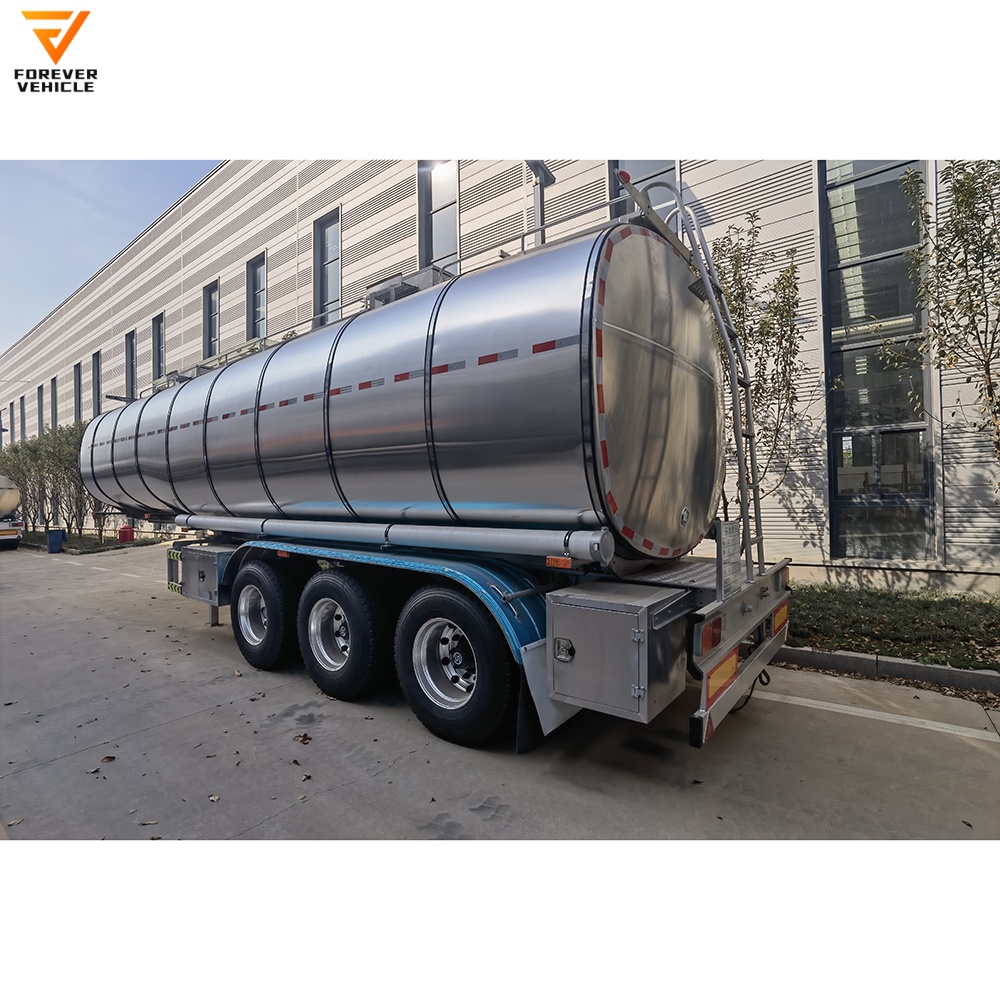

304 Stainless Steel Liquid Transport 3 Axle 45000 Liters 5 Compartment Water Tanker Oil Fuel Tank Trailer
Oil tank trailer is divided into two parts, the tank part and the chassis or driving part that supports the tank.
The rear parts of tanker trailer are roughly the same, with two axles and three axles commonly used. Select the tractor head as needed.
Tank trailer carry: transporting gasoline, kerosene, diesel, vegetable oil,edible oil, heavy oil, coal tar and liquid substances such as acids and bases, water, alcohol, aldehydes, benzene, ether etc.
The rear parts of tanker trailer are roughly the same, with two axles and three axles commonly used. Select the tractor head as needed.
Tank trailer carry: transporting gasoline, kerosene, diesel, vegetable oil,edible oil, heavy oil, coal tar and liquid substances such as acids and bases, water, alcohol, aldehydes, benzene, ether etc.
| Quantity: | |
|---|---|
| 3 Axles Oil Tank Trailer | |
| Tank body | |
| Shape | Round |
| Dimension | 10600mmx2500mm x3750mm (the exact size depends on the final design.) |
| Tare weight | 9000kgs/6600kgs/9500kgs |
| Total volume(m³) | 38000-50000 Liters ( 38-50cbm) |
| Tank Body Material | 5mm carbon steel/ aluminium alloy 5182/stainless steel 304 |
| Bottom Valve | With |
| End Plate | 6mm |
| Barrel | 5mm |
| Spurnwater | 6mm |
| Manhole covers | 2pcs |
| Submarine Valve | 2pcs 4 inches stainless steel valve |
| Discharging Valve | 1pcs 3 inches stainless steel valve,Diameter is 3 or 4 inch |
| Discharging Pipe | 3" transparent wire tube, 2 pcs, 5.5m/each |
| Stainless steel hose box | Standard |
| Walk | Carbon steel/ aluminium alloy /stainless steel diamond mesh walkway |
| ladder | Carbon steel ladder |
| Chassis | |
| Axle | 3 pcs |
| Landing Gear | JOST brand/ local brand 28T,single acting leg, |
| Suspension | Mechanical suspension |
| Leaf Spring | 10 pcs, standard, |
| Tire | 12 units |
| Rim | 9.0 * 22.5, 12pcs |
| ABS | Optional Benchi standard, 4S / 2M, |
| Air chamber | 4 double + 2 single, |
| Air tanker | 50L aluminum air tanker, 2 pcs. |
| King Pin | JOST 3.5 inch bolt-in king pin, |
| Others | |
| Spare wheel carrier | 1 pc |
| Fender | 1 pc, carbon steel arc fender |
| Painting | Paint three times, the first coat is anti-rust paint, and the next two coats are topcoat |
| Accessories | One standard tool box |
| Shipping Terms | By bulk cargo , RORO or 40HQ containers |
