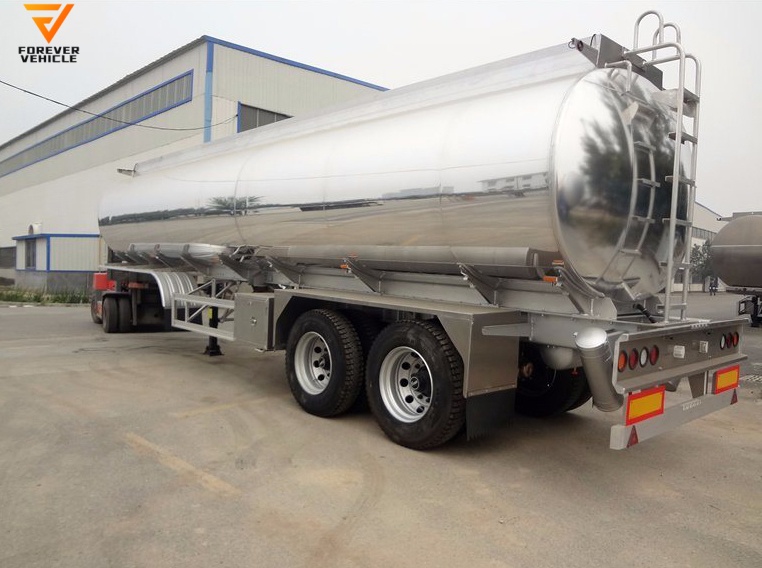

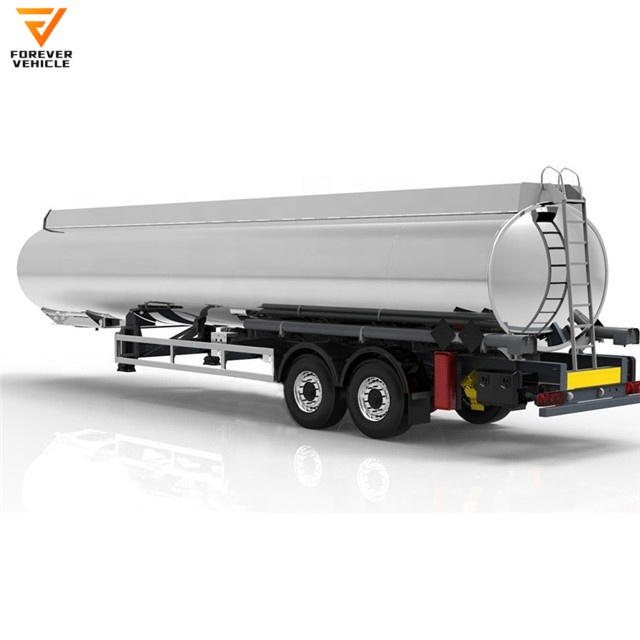

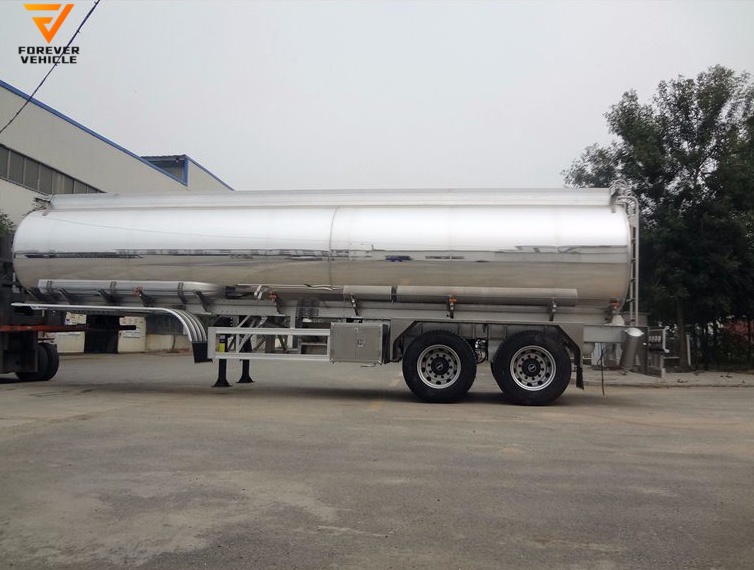

32000L Aluminium Fuel Tank 2 Axles Semi-Trailer for Aluminum Tanker Steel & Stainless Material 40 Ton Max Payload
| Quantity: | |
|---|---|
parameters | CJ | |
Overall dimension | 10000 x 2500x3750 (length x width x height) | |
Tare weight | 48,50 | |
Payload | 27,050 | |
Tank body | Tank material | ellipses |
Capacity and compartments | 32000L+5%, one compartments | |
Tank material | Aluminum alloy 5.5mm/5454 H32 | |
Bulkhead | Null | |
End | Aluminum alloy 6mm/5454"O", dished type | |
Baffle plate | Aluminum alloy 5.5mm/5454"O", dished type ( 7 plates) | |
Chassis | Frame | Aluminum alloy |
King pin | 2"(50mm)or3.5"(90mm) JOST | |
Landing leg | JOST A400 linkage lifting legs | |
Suspension | air suspension | |
Tires | 385/65 R22.5, 6+1 pieces | |
Rims | aluminum rim, 22.5×11.75, 4+1 pieces | |
Axles | FUWA brand, 13T, drum brake, 2 sets | |
Braking system | WABCO ABS, whole brake chamber, with parking braking valve and imported emergency relay valve, 1 set | |
Surface treatment and painting
| Tank internal surface | Clean up |
Tank external surface | Mirror | |
Frame Outer surface | Mill(original color) | |
Surface sign | As per customer's requirement |
