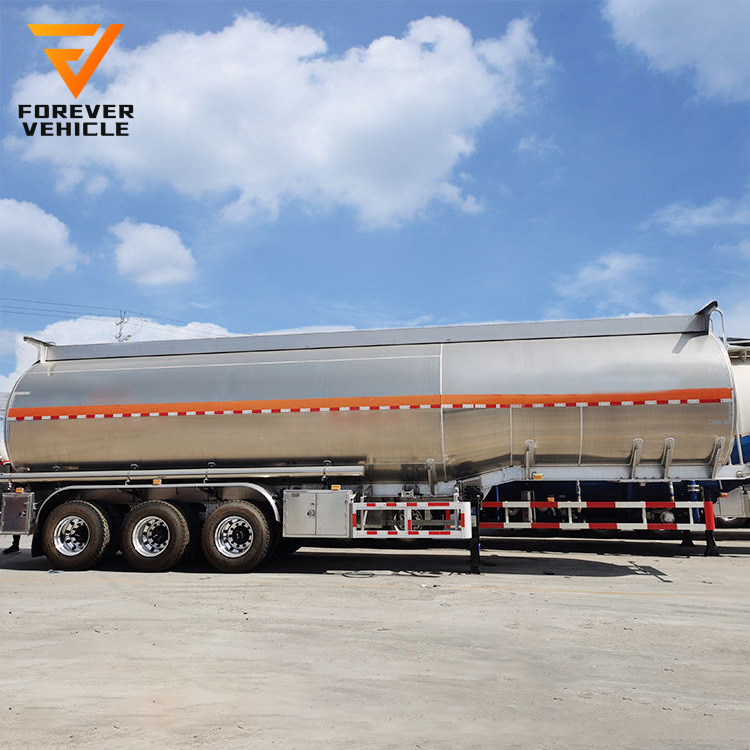

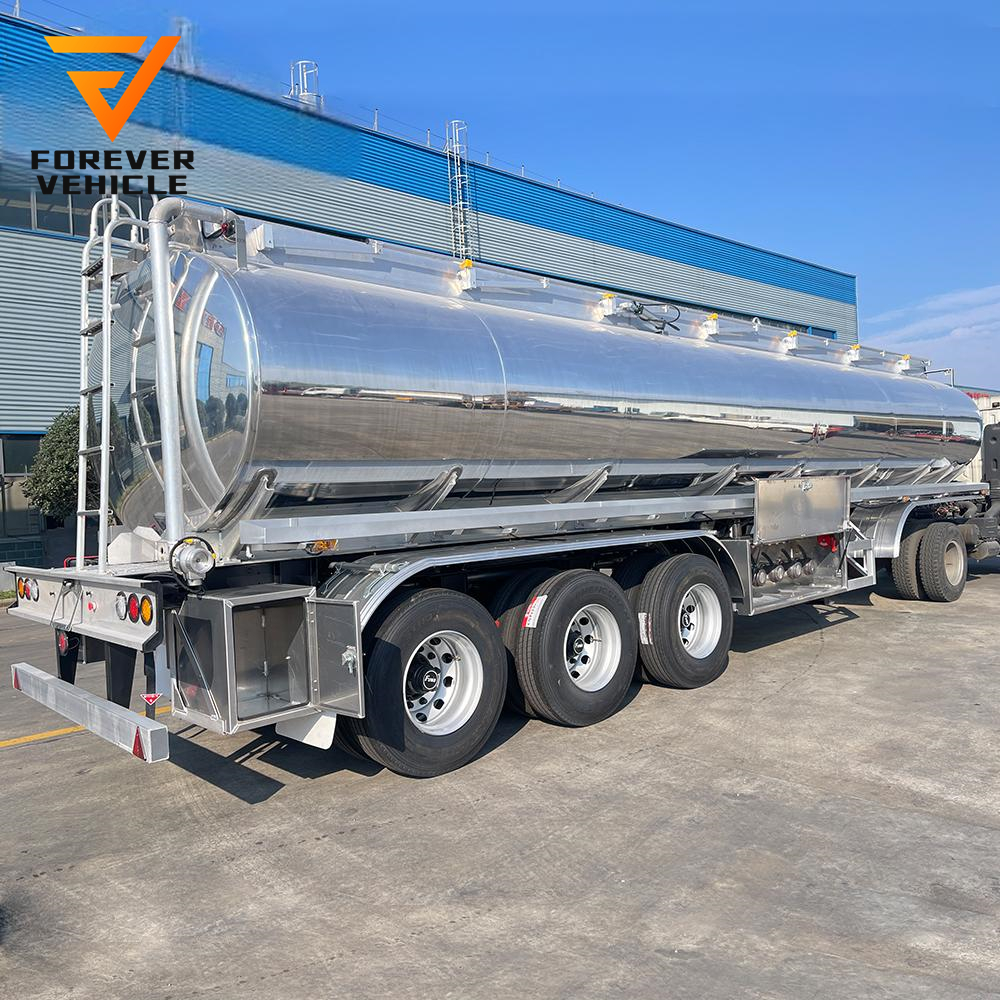

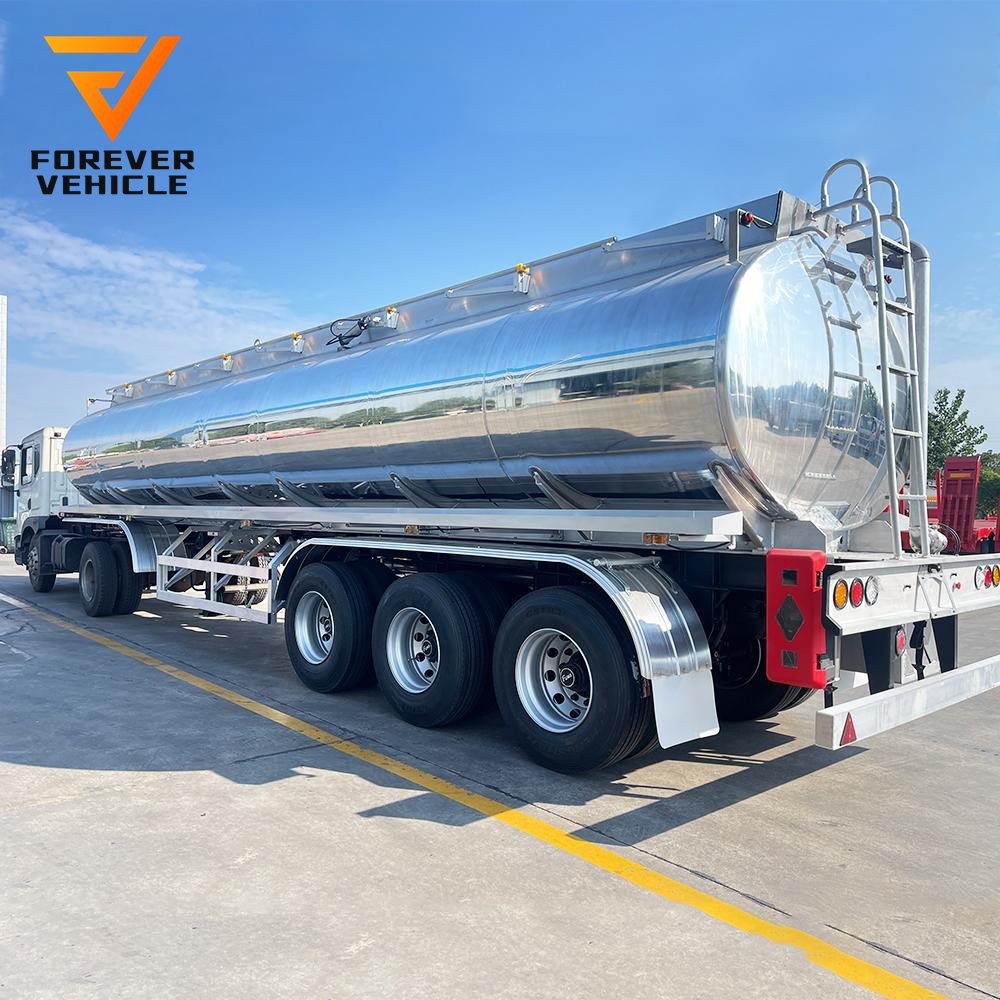

New Design Stainless Steel Aluminum Round Palm Oil Storage Tank Trailer Air Suspension 50000 Liter Fuel Tanker Semi Trailer
| Quantity: | |
|---|---|
Liquid Fuel / Water Tank Truck Semi Trailer | |||||
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
10000-30000liters/10-30cbm | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
30000-60000liters/30-60cbm | 3 | 60000 | 12 | ||
Above 60000liters/60cbm | 4 | 75000 | 16 | ||
Manufacture | Qingdao Eleph Industry & Trade Co., Ltd | ||||
Wheel Base (mm) | 1310 | ||||
leaf-spring Pcs | 10 | ||||
Axle | 13/16/18 T | ||||
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
Main BeamMaterial | Q345B manganese plates, automatic submerged arc welded | ||||
Brake System | Dual line braking system with automatic braking system/chambers | ||||
Brake Air Chamber | Double Model | ||||
Kingpin | 2' or 3.5' Interchangeable | ||||
Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
Tanker body | 5mm , sealing end: 6mm | ||||
Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
Brake Air Chamber | Four double and two single chamber | ||||
Electrical System | 24V,7core socket, lights according toEuropean standards. | ||||
Upper plate | 14mm | ||||
Lower plate | 16mm | ||||
Mainbeam Size | Mid Web | 8 mm | |||
Height | 500-520mm | ||||
Tool Box | 1 box of standard tools | ||||
Spare tire carrier | 2 sets | ||||
Color and Logo | Depends on the buyer’s requirement. | ||||
Pin Height | According to the height of the tractor saddle. | ||||
Manhole | 2pcs | ||||
Body Material | Carbon Steel/ Stainless Steel/Aluminium | ||||
Ladders | Steel with anti slipper walking way | ||||
Fire extinguisher | 2x 4kgs | ||||
handrail | Steel, manual | ||||
Application | For liquid transportation | ||||
Liquid Fuel / Water Tank Truck Semi Trailer | |||||
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
10000-30000liters/10-30cbm | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
30000-60000liters/30-60cbm | 3 | 60000 | 12 | ||
Above 60000liters/60cbm | 4 | 75000 | 16 | ||
Manufacture | Qingdao Eleph Industry & Trade Co., Ltd | ||||
Wheel Base (mm) | 1310 | ||||
leaf-spring Pcs | 10 | ||||
Axle | 13/16/18 T | ||||
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
Main BeamMaterial | Q345B manganese plates, automatic submerged arc welded | ||||
Brake System | Dual line braking system with automatic braking system/chambers | ||||
Brake Air Chamber | Double Model | ||||
Kingpin | 2' or 3.5' Interchangeable | ||||
Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
Tanker body | 5mm , sealing end: 6mm | ||||
Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
Brake Air Chamber | Four double and two single chamber | ||||
Electrical System | 24V,7core socket, lights according toEuropean standards. | ||||
Upper plate | 14mm | ||||
Lower plate | 16mm | ||||
Mainbeam Size | Mid Web | 8 mm | |||
Height | 500-520mm | ||||
Tool Box | 1 box of standard tools | ||||
Spare tire carrier | 2 sets | ||||
Color and Logo | Depends on the buyer’s requirement. | ||||
Pin Height | According to the height of the tractor saddle. | ||||
Manhole | 2pcs | ||||
Body Material | Carbon Steel/ Stainless Steel/Aluminium | ||||
Ladders | Steel with anti slipper walking way | ||||
Fire extinguisher | 2x 4kgs | ||||
handrail | Steel, manual | ||||
Application | For liquid transportation | ||||
